Victron Energy  |  SKU: OND-HYB-48V/5000W-VIC  |  Barcode: 8719076049333

MPN: PMP482507010

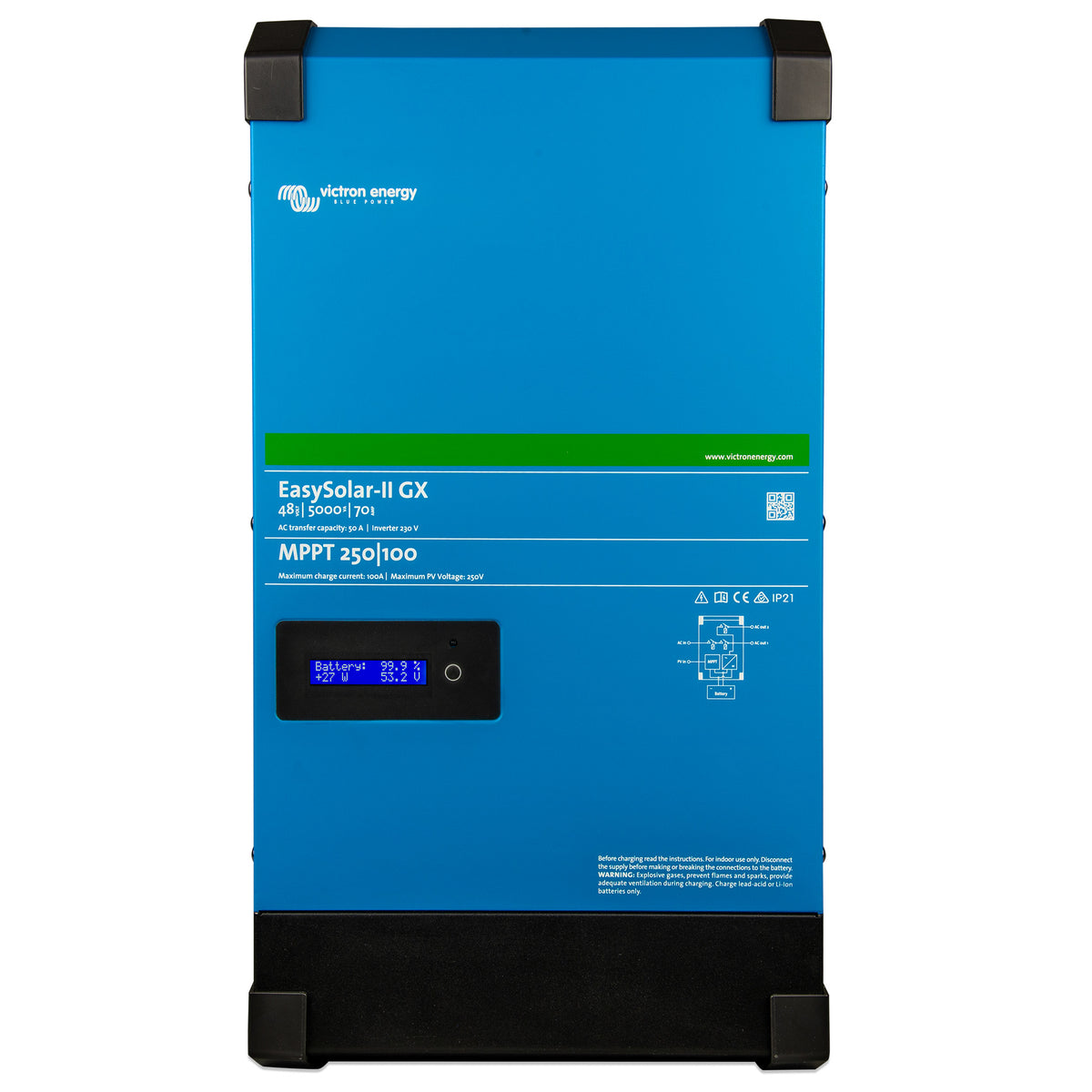

Victron Energy EasySolar-II 48/5000/70-50 MPPT 250/100 GX 230V | PMP482507010

$2,359.30 CAD
Shipping calculated at checkout.

The EasySolar-II GX combines an MPPT Solar Charge Controller, an inverter/charger and control hub in one enclosure. The product is easy to install, with a minimum of wiring.

⚠ WARNING
This device operates on 230 V only.
It is not intended for use in North America (Canada, United States, etc.), where the standard voltage is typically 120 V.

Warranty

This product is covered by a 5 years limited warranty

Delivery and Shipping

Orders are shipped within 2 business days. If a problem prevents us from shipping your order within this time, we will notify you.

Depending on your delivery location, transit time will vary from 1 day to 5 days

Note for US and Internationnal buyers: the customer is responsible for paying any import costs to the shipping carrier, such as duties, import taxes, or brokerage/disbursement fees which may apply upon delivery.

Technical Specifications User manual

Victron Energy EasySolar-II 48/5000/70-50 MPPT 250/100 GX 230V | PMP482507010

The all-in-one solar power solution

The Victron EasySolar-II GX integrates the following elements:

• A MultiPlus-II inverter/charger

• A SmartSolar MPPT -Tr solar charge controller

• A GX device with a 2 x 16-character display.

These elements come prewired together inside a single unit. This greatly simplifies most installations, saving time and money.

Display and WI-FI

The display reads battery, inverter and solar charge controller parameters.

The same parameters can be accessed with a smartphone or other Wi-Fi enabled device.

In addition, Wi-Fi can be used to set up the system and to change settings.

Solar charge controller

The DC output of the SmartSolar MPPT is parallel wired with the DC connection of the MultiPlus-II inverter/charger.

The on/off mechanism of the MultiPlus-II also controls the SmartSolar MPPT.

GX device

The integrated GX device includes:

• A BMS-Can interface. This can be used to connect to a compatible CAN-bus managed battery. Note that this not a VE.Can compatible port.

• A USB port

• An Ethernet port

• A VE.Direct port

The GX device controls the MultiPlus-II and the SmartSolar MPPT with respectively a VE.Bus and a VE.Direct connection.
