Victron Energy  |  SKU: BAT-LIT-VIC-NG-24V-200AH  |  Barcode: 8719076058946

Victron Energy – 24V/200Ah Lithium LifePO4 NG Battery | BAT524120620

$2,566.06 CAD
Shipping calculated at checkout.

Building upon the success of the Lithium Smart Series, the NG (Next Generation) series incorporates significant enhancements.

Tailored for those seeking advanced and reliable energy storage, the Lithium NG series marks a pivotal advancement in the Victron Energy product lineup, ready to meet the demands of tomorrow.

Warranty

This product is covered by a 3 years limited warranty

Delivery and Shipping

Orders are shipped within 2 business days. If a problem prevents us from shipping your order within this time, we will notify you.

Depending on your delivery location, transit time will vary from 1 day to 5 days

Note for US and Internationnal buyers: the customer is responsible for paying any import costs to the shipping carrier, such as duties, import taxes, or brokerage/disbursement fees which may apply upon delivery.

Technical Specifications User manual

Victron Energy – 24V/200Ah Lithium LifePO4 NG Battery | BAT524120620 at a glance

  • Technology

    LiFePO4

  • Group Size

    N/A

  • Dimensions (H x W x D)

    9.3 X 25.5 X 6.4 in
    235 X 648 X 162 mm

  • Weight

    82 lbs / 37 kg

  • Voltage

    24V

  • Capacity (Ah)

    200 Ah

  • Capacity (kWh)

    5.12 kWh

Victron Energy – 24V/200Ah Lithium LifePO4 NG Battery | BAT524120620

Victron Energy Lithium NG batteries are Lithium Iron Phosphate (LiFePO4 or LFP) batteries available with a nominal voltage of 12.8 V, 25.6 V and 51.2 V in various capacities. They can be connected in series, parallel and series/parallel so that a battery bank can be built for system voltages of 12 V, 24 V or 48 V.

The maximum number of batteries in one system is 50, which results in a maximum energy storage of
192 kWh in a 12 V system and up to 384 kWh in a 24 V and 48 V system.

Key features:

Integrated shunt

The battery data (battery voltage, current and temperature) are transmitted to the BMS and evaluated there, i.e. to calculate the state of charge, which can then be read out via VictronConnect or a GX communication centre, or to create and issue specific warnings and alarms.

Automatic setup, monitoring and control via VictronConnect App or a GX device and the VRM Portal

All battery parameters are managed by the BMS automatically. The BMS automatically detects the
system voltage and the number of batteries in parallel, series and series/parallel connection. The BMS (from now on Lynx Smart BMS NG 500 A/1000 A, further models to follow) is mandatory and must be purchased separately.

Monitoring and control take place via VictronConnect (every BMS model has Bluetooth), a GX communication centre or the VRM Portal. You can view battery parameters such as cell status, cell voltages, battery current and temperatures in real-time. The battery firmware is automatically updated by the BMS.

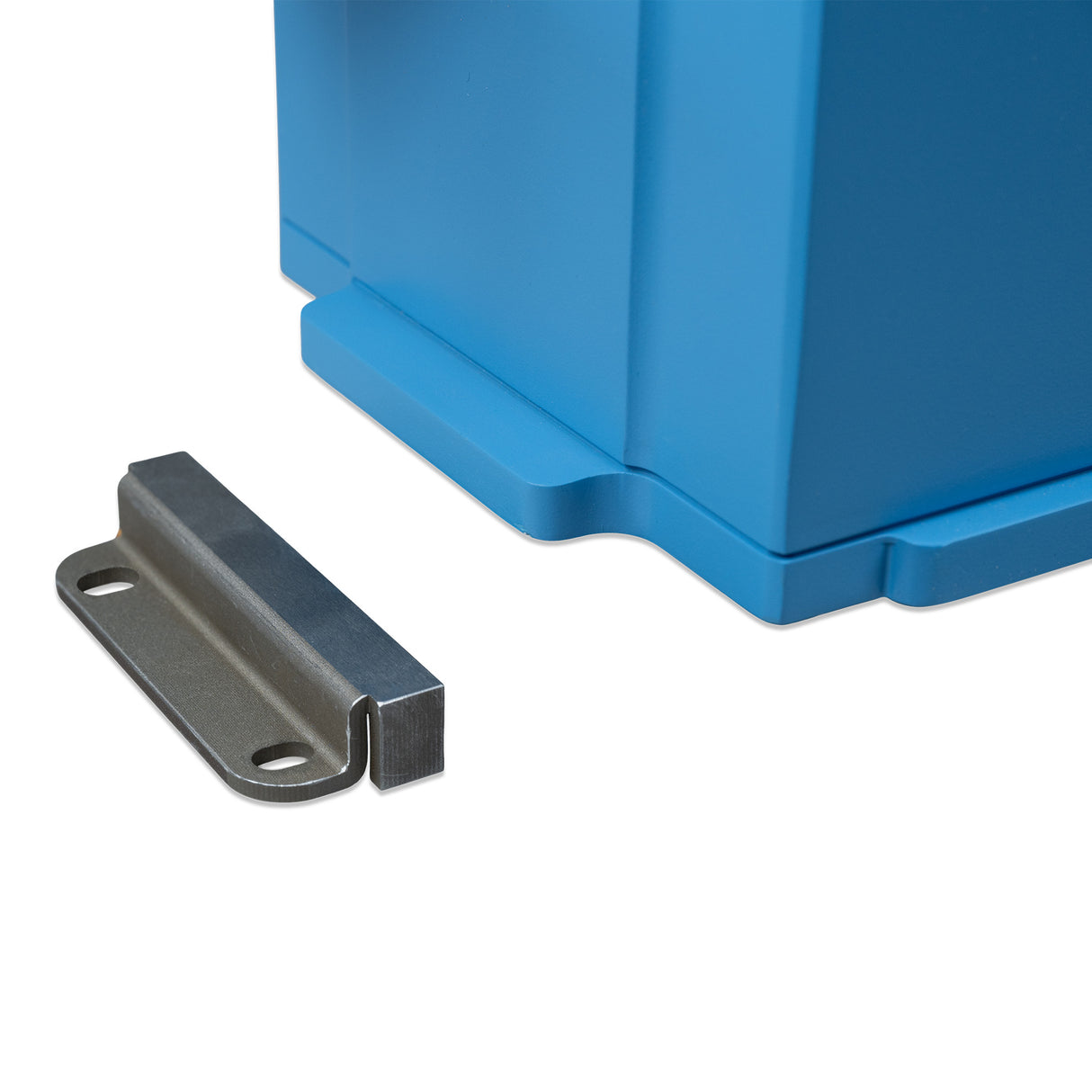

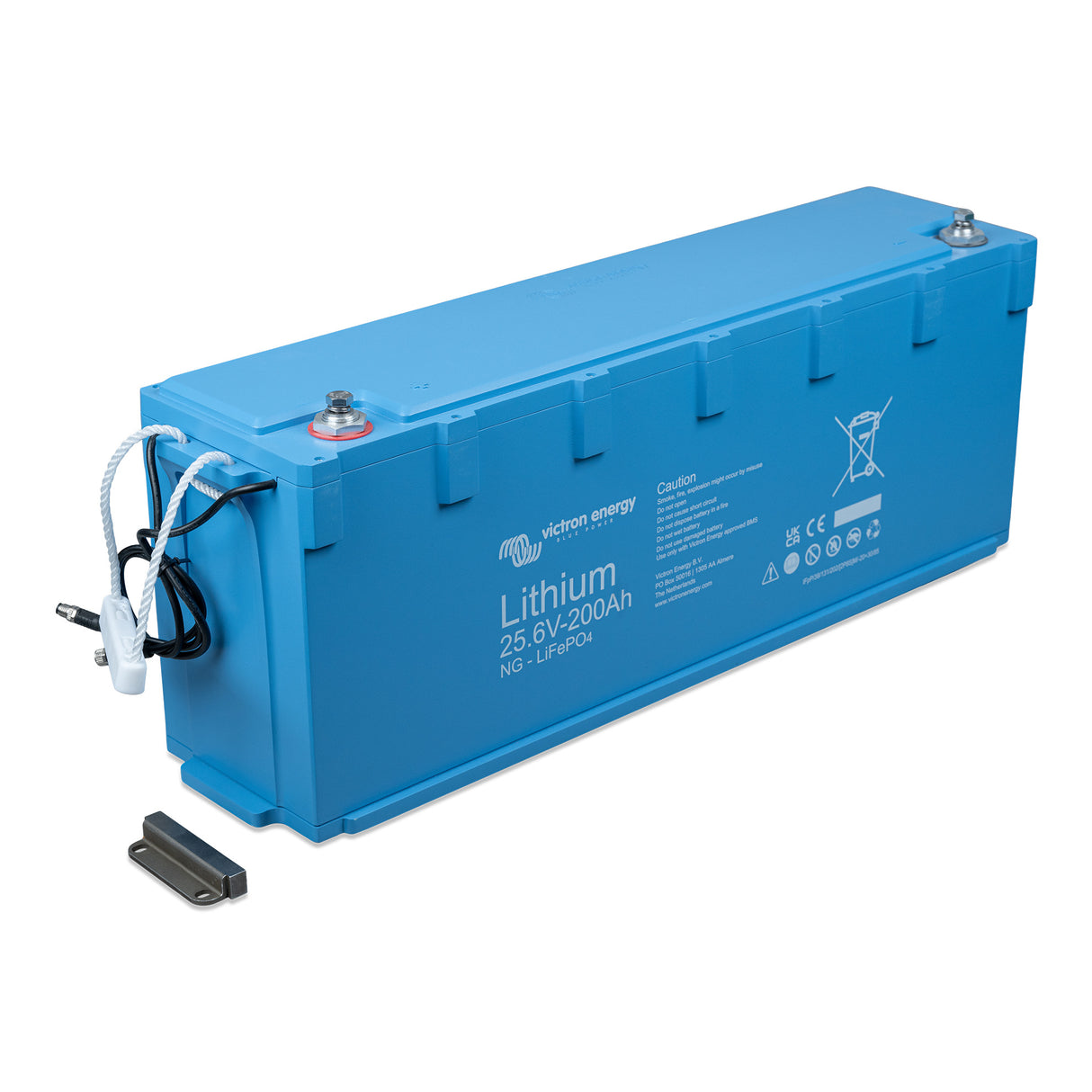

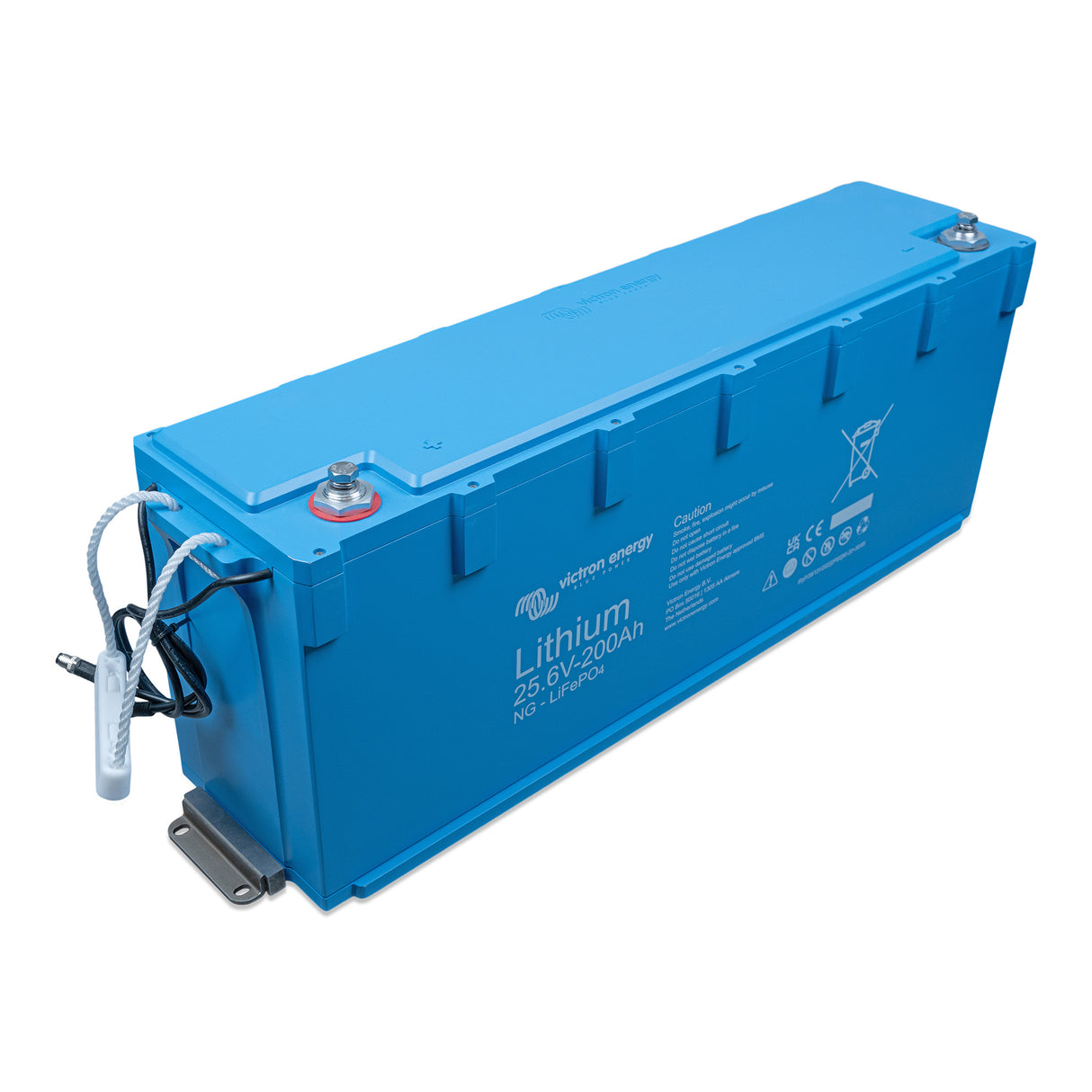

Easy bracket mounting

Mounting brackets make the installation easier and ensure that the battery is optimally secured against
slipping and tipping over.

Increased ingress protection (IP-rating)

The Lithium NG batteries are effectively sealed against dust and can withstand low-pressure water jets, making them suitable for environments where exposure to dust and water is a concern.

Low self-discharge rate

The self-discharge rate has been significantly improved and is now a maximum of 2 % of the battery capacity per month. A low self-discharge rate contributes to the overall performance, longevity, and reliability of the NG batteries.

CYCLE LIFE (capacity ≥ 80 % of nominal)

80 % DoD 2500 cycles
70 % DoD 3000 cycles
50 % DoD 5000 cycles

How does the new Victron Energy Lithium NG Battery & BMS NG work?
