Victron Energy  |  SKU: CHARG-AC-VIC-BS-IP22-24V/16A-1  |  Barcode: 8719076052500

Victron Energy Blue Smart IP22 Charger 24V/16(1) 120V NEMA 5-15 - single output | BPC241647102

$261.35 CAD
Shipping calculated at checkout.

Charge your 24V batteries intelligently with the Victron Energy Blue Smart IP22 24V/16A. This advanced battery charger utilizes adaptive charging technology, temperature compensation, and various charging modes to ensure optimal battery performance and extend battery life. Trust in the reliability and intelligence of the Blue Smart IP22 charger from Victron Energy

Warranty

This product is covered by a 5 years limited warranty

Delivery and Shipping

Orders are shipped within 2 business days. If a problem prevents us from shipping your order within this time, we will notify you.

Depending on your delivery location, transit time will vary from 1 day to 5 days

Note for US and Internationnal buyers: the customer is responsible for paying any import costs to the shipping carrier, such as duties, import taxes, or brokerage/disbursement fees which may apply upon delivery.

Datasheets Manual

Victron Energy Blue Smart IP22 Charger 24V/16(1) 120V NEMA 5-15 - single output | BPC241647102 at a glance

  • AC Input Voltage

    120V

  • DC Output Voltage

    24V

  • DC Output Current

    16A

  • Connectors

    None

  • Number of DC output

    1

  • Protection Category

    IP22

  • Dimensions

    9.7 X 4.3 X 2.6 in
    235 X 108 X 65 mm

  • Weight

    3 lbs / 1.3 kg

Other available models of Victron Blue Smart Battery Chargers

Victron Energy BPC121545102 Blue Smart IP22 Charger 12/15(1) 120V NEMA 5-15 - left
Victron Energy Blue Smart IP22 Charger 12V/15(1) 120V NEMA 5-15 - single output | BPC121545102
View details
Victron Energy BPC123047102 Blue Smart IP22 Charger 12/30(1) 120V NEMA 5-15 - front
Victron Energy Blue Smart IP22 Charger 12V/30(1) 120V NEMA 5-15 - single output | BPC123047102
View details
Victron Energy BPC123048102 Blue Smart IP22 Charger 12/30(3) 120V NEMA 5-15 - left
Victron Energy Blue Smart IP22 Charger 12V/30(3) 120V NEMA 5-15 - 3 output | BPC123048102
View details

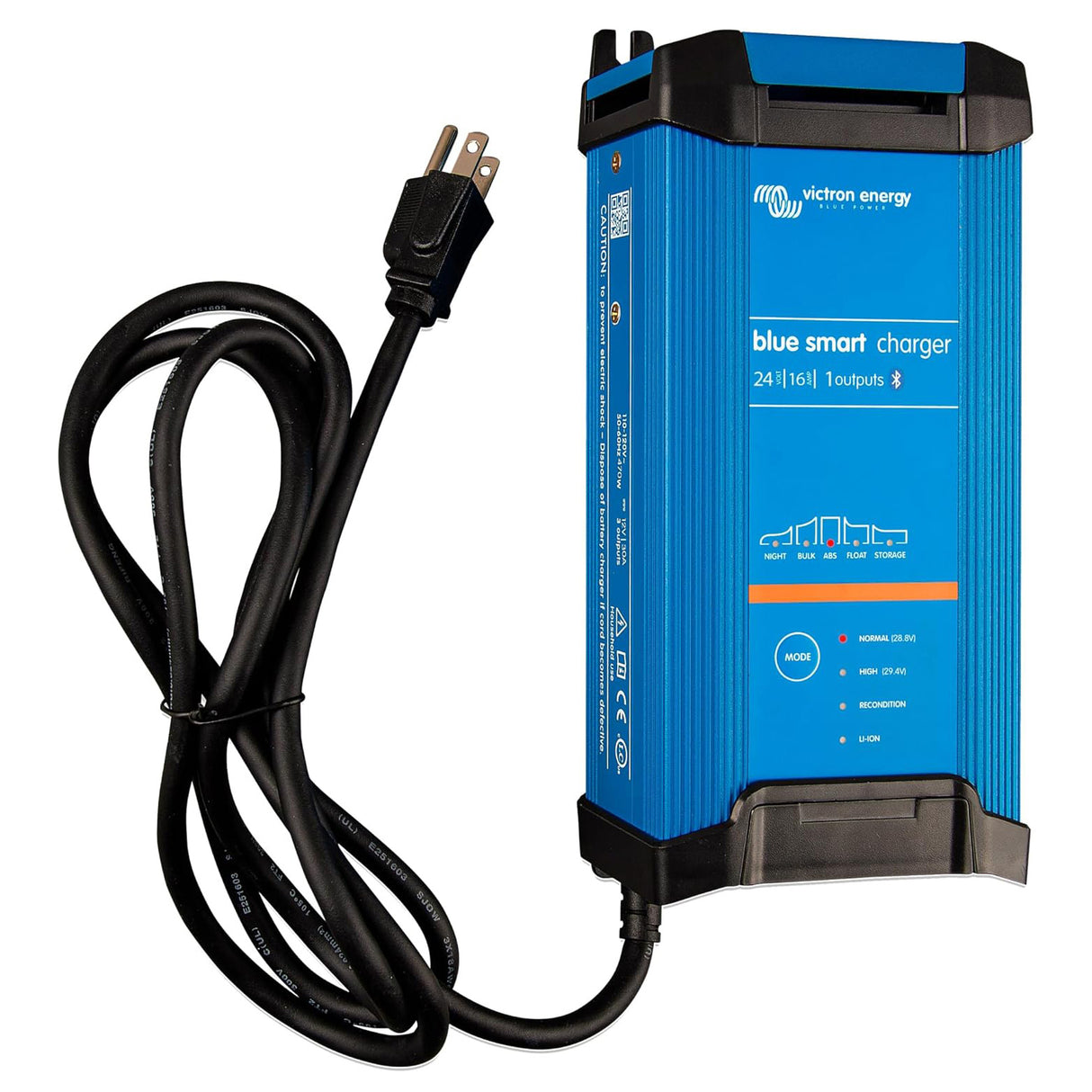

Victron Energy BPC241647102 Blue Smart IP22 Charger 24/16(1) 120V NEMA 5-15 - left
Victron Energy Blue Smart IP22 Charger 24V/16(1) 120V NEMA 5-15 - single output | BPC241647102
View details
Price
Price
$177.82 CAD
$256.58 CAD
$274.48 CAD
$261.35 CAD
Protection Category
Protection Category
IP22
IP22
IP22
IP22
AC Input Voltage
AC Input Voltage
120V
120V
120V
120V
DC Output Voltage
DC Output Voltage
-
-
-
-
DC Output Current
DC Output Current
15A
30A
30A
16A
Number of output
Number of output
1
1
3
1
Dimensions
Dimensions
9.7 X 4.3 X 2.6 in
235 X 108 X 65 mm
9.7 X 4.3 X 2.6 in
235 X 108 X 65 mm
9.7 X 4.3 X 2.6 in
235 X 108 X 65 mm
9.7 X 4.3 X 2.6 in
235 X 108 X 65 mm
Weight
Weight
3 lbs / 1.3 kg
3 lbs / 1.3 kg
3 lbs / 1.3 kg
3 lbs / 1.3 kg

Simultaneously charge up to 3 batteries (3-output models)

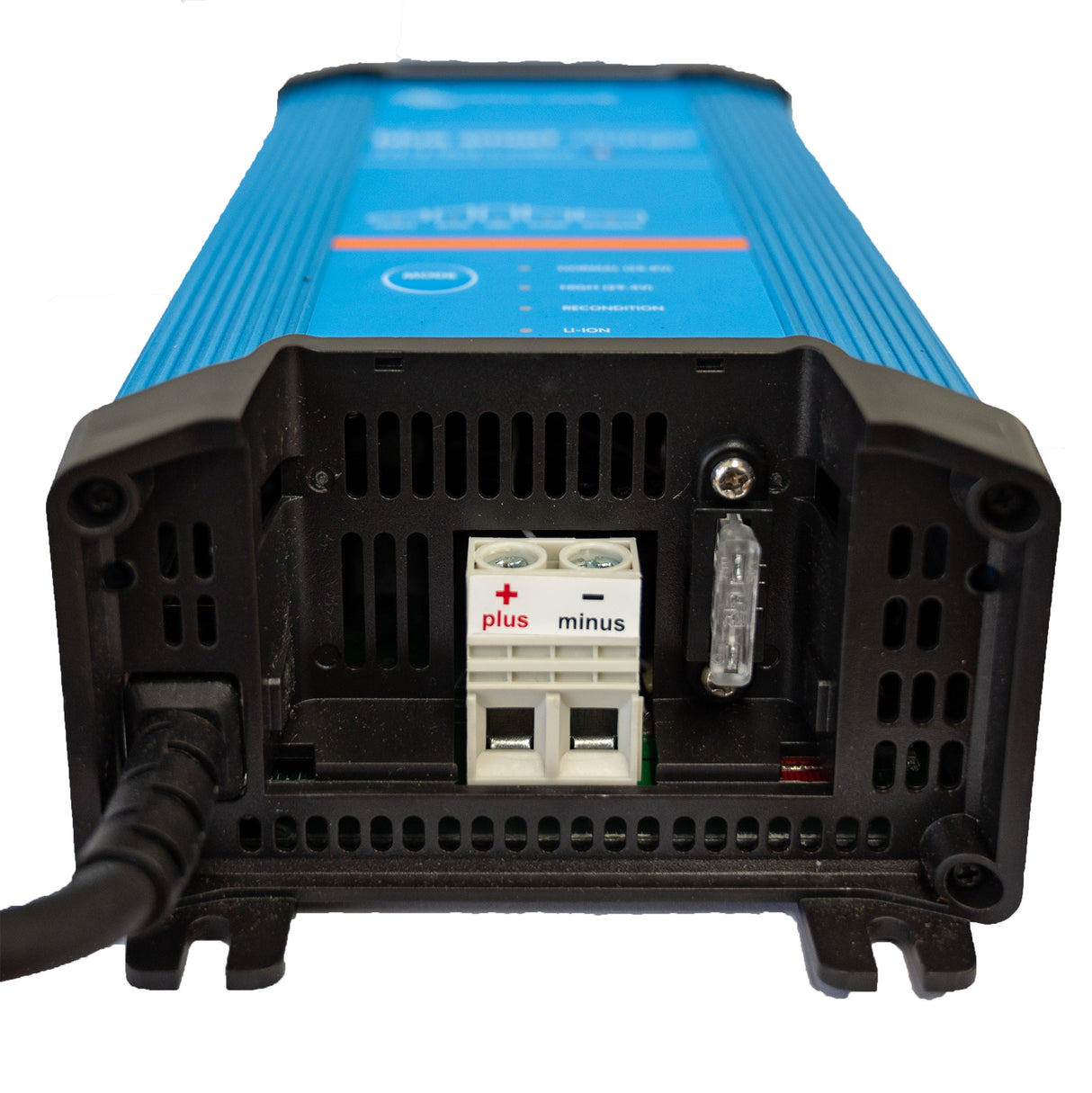

  • Victron Energy IP22 Battery charger with 1 output connectors

    1 output model

  • Victron Energy IP22 Battery charger with 3 output connectors

    3 output model

Victron Energy Blue Smart IP22 Charger 24V/16(1) 120V NEMA 5-15 - single output | BPC241647102

Victron Energy P22 battery charger mobile application

Bluetooth Smart

The wireless solution to monitor voltage and current, to change settings and to update the charger when new features become available.

High efficiency
With up to 94 % efficiency, these chargers generate up to four times less heat when compared to the industry standard.
And once the battery is fully charged, power consumption reduces to 0,5 Watt, some five to ten times better than
the industry standard.

Adaptive 6-stage charge algorithm: test - bulk – absorption - recondition – float – storage

The Blue Smart Charger features a microprocessor controlled ‘adaptive’ battery management. The adaptive feature will automatically optimize the charging process relative to the way the battery is being used.

Fully programmable charge algorithm

Absorption, Float and Storage voltages as well as the Recondition setting and the temperature compensation value can be programmed with the Bluetooth app.
After enabling the Expert mode, the app allows changing practically all parameters and time limits used by the charge algorithm.

Storage Mode: less maintenance and aging when the battery is not in use

The storage mode kicks in whenever the battery has not been subjected to discharge for 24 hours. In the storage mode float voltage is reduced to 2,2 V/cell (13,2 V for a 12 V battery) to minimize gassing and corrosion of the positive plates. Once a week the voltage is raised back to the absorption level to ‘equalize’ the battery. This feature
prevents stratification of the electrolyte and sulfation, which are major causes of early battery failure.

Also charges Li-ion batteries

Li-ion batteries are charged with a simple bulk – absorption – float algorithm.
Fully discharged battery recovery function Will initiate charging even if the battery has been discharged to zero volts.
Will reconnect to a fully discharged Li-ion battery with internal disconnect function.

NIGHT and LOW setting

When in NIGHT or LOW mode, the output current is reduced to max. 50 % of the nominal output and the charger will be totally noiseless. The NIGHT mode automatically ends after 8 hours. The LOW mode can be ended manually.

Protected against overheating

Output current will reduce as temperature increases up to 50 °C, but the Blue Smart Charger will not fail.

Eleven LEDs for status indication

Charge algorithm: TEST / BULK / ABSORPTION / RECONDITION / FLOAT / STORAGE / READY.
MODE button to set: NORMAL (14,4 V) / HIGH (14,7 V) / RECONDITION / LI-ION.

Forty cycle history log

The history screen contains historical usage data over the charger’s lifetime and detailed statistics for the last 40 charge cycles.

VE.Smart Networking

The VE.Smart Network is a wireless device to device (D2D) communication network between Victron products, using Bluetooth Smart.

Optional battery voltage and temperature compensation, and current sensing

The VE.Smart Network opens the possibility to optimize the charge process: a Smart Battery Sense, Smart Battery Monitor or a SmartShunt can be used to communicate battery voltage and temperature to one or more battery chargers. A Smart Battery Monitor or SmartShunt will also communicate battery current.

Synchronized parallel charging

Synchronize up to ten battery chargersin a VE.Smart network to make them charge a battery as if they were one large charger. The chargers will synchronize the charge algorithm between them. They will simultaneously switch from one charge state to another, for example from bulk to absorption.
Synchronized parallel charging has several interesting advantages:
-Redundancy: if one charger stops for whatever reason, the other chargers will continue to operate.
- Flexibility: simply add a charger to the network if more current is needed.
- Cost: several low power chargers will in general cost less than one high power charger.
- Installation: several low power chargers may be easier to fit in a confined space.

History and settings for Blue Smart Chargers in VictronConnect

Features

a. Bluetooth setup and monitoring (Using VictronConnect)

Equipped with integrated Bluetooth; enabling quick and simple setup, advanced configuration, comprehensive monitoring and firmware updates via the VictronConnect app and a Bluetooth enabled device (such as a mobile phone or tablet).

b. VE.Smart Network compatible

VE.Smart Networking capability allows multiple chargers to operate in unison with synchronised charging, and receive accurate battery voltage (Voltsense), charge current (Current-sense) and battery temperature (Temp-sense) data from a compatible battery monitor (such as a BMV, SmartShunt, Smart Battery Sense or VE.Bus Smart Dongle) to further enhance the charge cycle.

c. Integrated charge presets

Integrated charge presets (selected via the MODE button or VictronConnect app) combined with adaptive charge logic are well suited for most common battery types; such as LiFePO4, AGM, Gel and flooded lead-acid. Advanced configuration with specific user defined settings is also possible using VictronConnect.

d. Multi-stage charge algorithm

The multi-stage charge algorithm is specifically engineered to optimise each recharge cycle and charge maintenance over extended periods.

e. Adaptive absorption

Adaptive absorption monitors the battery’s response during initial charging and intelligently determines the appropriate
absorption duration for each individual charge cycle. This ensures that the battery is fully recharged regardless of the discharge level or capacity and avoids excessive time at the elevated absorption voltage (that can accelerate battery aging).

f. Temperature compensation

Charge voltage is automatically compensated depending on the ambient temperature; this ensures that the battery is charged at the optimal charge voltage regardless of the climate and avoids the need for manual settings adjustments. Temperature compensation is not required and automatically disabled when in LI-ION charge mode.

g. High efficiency

The Blue Smart IP22 Charger range is up to ~95% efficient; resulting in lower power usage, less heat generated and cooler
operation

h. Durable and safe

i. Engineered to provide years of trouble-free and dependable operation in all usage conditions

ii. Protection against overheating: output current will be reduced if the charger temperature increases above 40°C (linear derate from 100% at 40°C to 20% at 60°C)

iii. Protection against output short circuit: If a short circuit condition is detected the charger will shut down

iv. Protection against reverse polarity connection: If the charger is incorrectly connected to a battery with reverse polarity the user replaceable fuse will blow

i. Silent operation

Charger operation is totally silent whilst the cooling fan is off; the cooling fan is only activated when it is necessary during demanding periods. If the NIGHT or LOW current mode is activated; the maximum output current is reduced to 50% of nominal and the cooling fan will remain off.

j. Lithium Ion compatible

Compatible with Li-ion (LiFePO₄) batteries; when the integrated LI-ION charge mode is selected the charge cycle settings are altered to suit.
If the charger is connected to a battery where under voltage protection (UVP) has tripped, it will automatically reset UVP and start charging; many other chargers will not recognise a battery in this state.

Warning: Do not charge Li-ion batteries if the battery temperature is below 0°C.

k. Storage stage

An additional stage to extend battery life whilst the battery is unused and on continuous charge.

l. Recondition stage

An optional stage that can partially recover/reverse lead acid battery degradation due to sulfation; typically caused by inadequate charging or if the battery is left in a deeply discharged state.

m. Configurable output current

A fully configurable setting that limits the maximum charge current to a reduced level; beneficial when charging lower
capacity batteries with a high current charger.

n. Recovery function

The charger will attempt to recharge a severely discharged battery (even down to 0V) with low current and then resume normal charging once the battery voltage has risen sufficiently; many other chargers will not recognise a battery in this state.

o. Power supply mode

A specific mode to use the charger as a DC power supply; to power equipment at a constant voltage with or without a battery connected
