Midnite Solar MNPV3 for 150 VDC charge controllers and 600 VDC grid-tie inverters.
DC Combiner Box for 3 x 150 VDC breakers or 2 x 600 VDC fuse holders
is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Warranty
This product is covered by a 5 year limited warranty
Delivery and Shipping
Orders are shipped within 2 business days. If a problem prevents us from shipping your order within this time, we will notify you.
Depending on your delivery location, transit time will vary from 1 day to 5 days
Note for US and Internationnal buyers: the customer is responsible for paying any import costs to the shipping carrier, such as duties, import taxes, or brokerage/disbursement fees which may apply upon delivery.
DC Combiner Box for 3 x 150 VDC breakers or 2 x 600 VDC fuse holders
DC Combiner Box for 3 x 150 VDC breakers or 2 x 600 VDC fuse holders

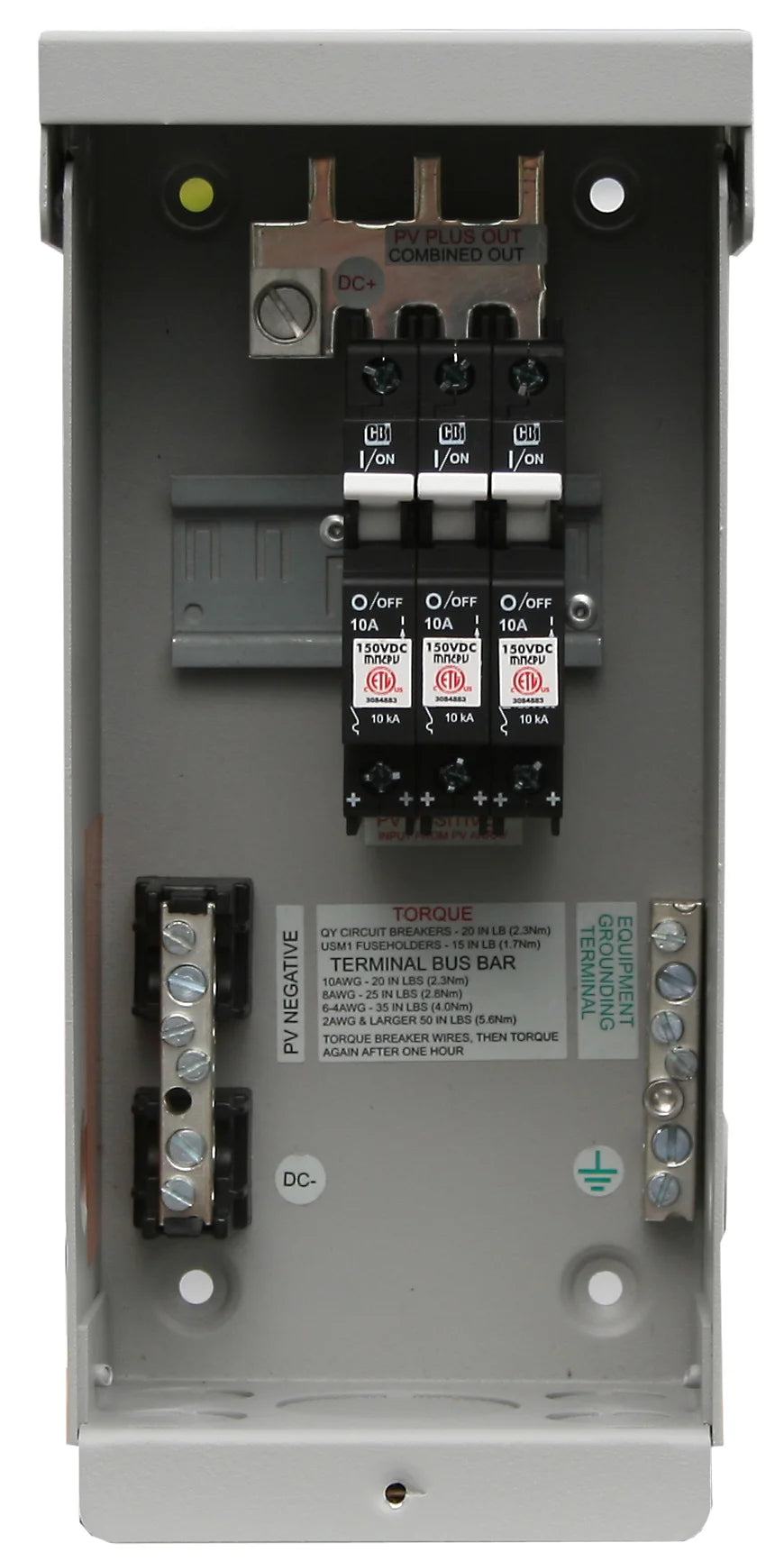

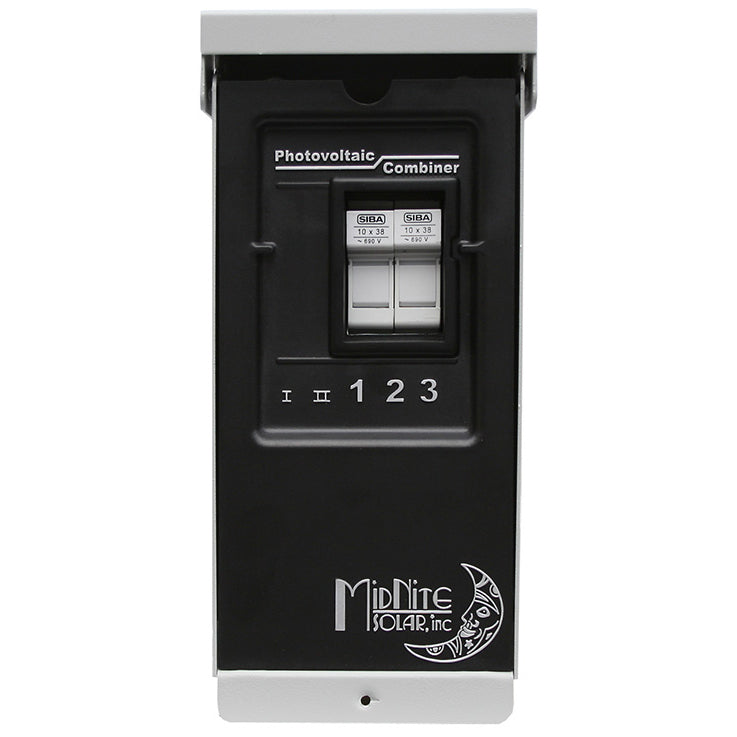

Gray aluminum type 3R rainproof enclosure with insulating deadfront, will accept three 150VDC (MNEPV) breakers or two 600/1000 VDC fuse holders.
With modifications to the deadfront 3 dinrail fuse holders can be used. Includes a 60 amp plus bus bar, 6 position PV negative bus bar and a 6 position ground bus bar.
Punch out tabs on the plastic deadfront make for a clean installation using circuit breakers.
An included snap in adapter makes for a professional looking installation when installing fuse holders.
A single 300VDC breaker from 7 to 50 amps may be installed as a disconnect (no combining busbar) .
The enclosure may be mounted to a pole or wall indoors or out.
