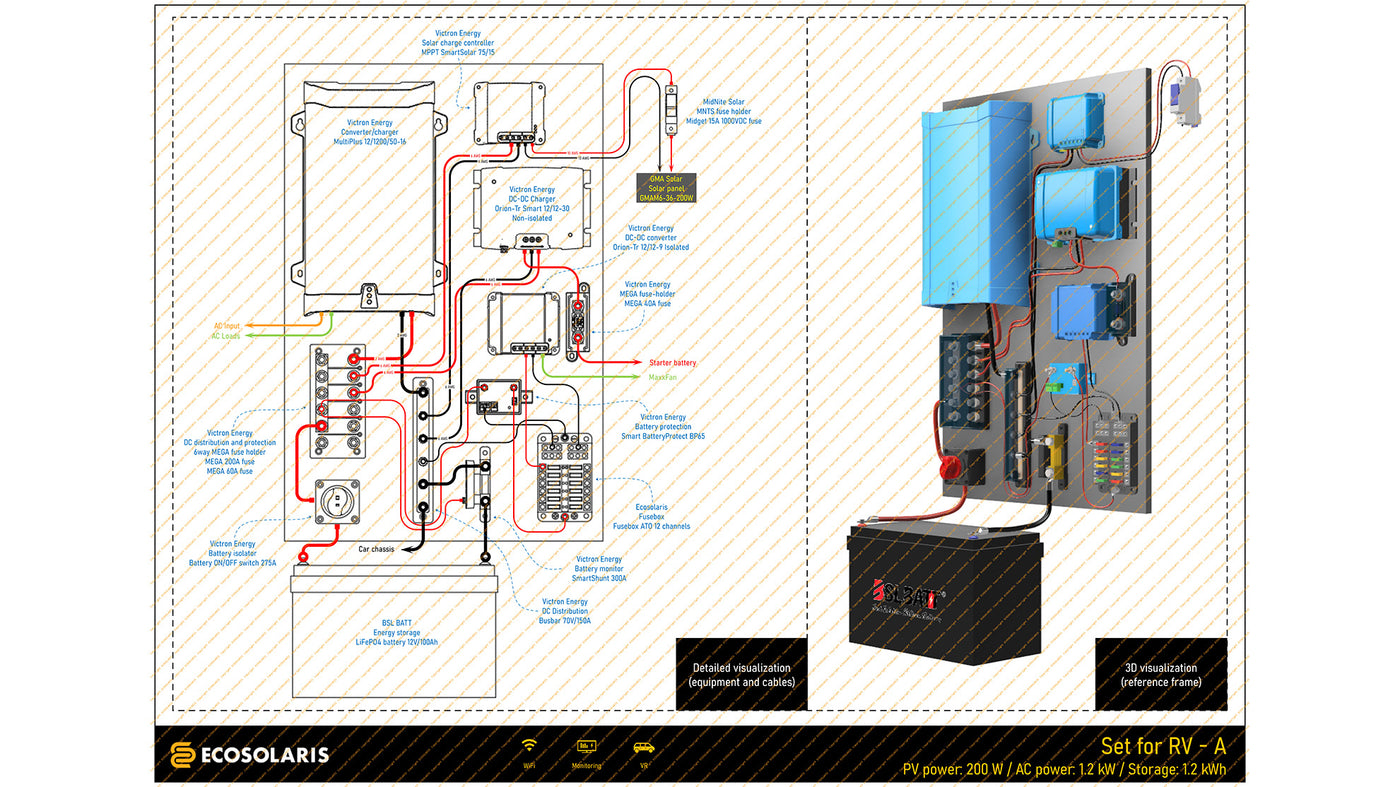

RV Kit A- 100Ah battery with 200W solar panel

AC Power: 1.2kW
Storage: 1.2 kWh

RV - 200W Solar Panel Kit

• 1 X GMA - GMAM6-36M – 200W Monocrystalline Solar Panel
• 1 X Boat cable #10 for solar panel with MC4 connector and Solar Panel Cable Entry Gland (White) - 15ft
• 1 X Universal “Z” bracket roof mounting system for solar panel
• 1 X MidNite Solar, MNTS Touch Safe Fuse Holder for 10x38 mm fuses
• 2 X Midnite Solar - 15A 1000VDC Midget fuse

RV - 75V/15A Charge Controller Kit

• 1 X Victron Energy SmartSolar MPPT 75/15 Solar Charge Controller
• 1 X 36" #10 Solar charge controller cables (pair) - 3/8" lug on one end

RV - 100Ah LiFePO4 Battery Kit

• 1 X BSLBATT – 12V/100Ah LiFePO4 Battery
• 1 X 36'' Black #2 jumper battery interconnection cable with lugs
• 1 X 36'' Red #2 jumper battery interconnection cable with lugs
• 1 X 12'' Black #2 jumper battery interconnection cable with lugs
• 1 X 12'' Red #2 jumper battery interconnection cable with lugs
• 1 X Victron Energy – Busbar – 4 Studs – 70V/150A
• 1 X Victron Energy Battery Switch ON/OFF 275A
• 1 X Victron Energy Fuse holder 6-way for MEGA-fuse
• 1 X Victron Energy SmartShunt 300A
• 1 X Victron Energy Orion-Tr 12/12-9A (110W) Isolated DC-DC Converter
• 1 X Victron Energy BatteryProtect 12/24V-65A
• 1 X 12-way fuse holder for ATO fuse
• 1 x 5' Black #10 electrical cable for inside distribution use / 1 conductor
• 1 x 5' Red #10 electrical cable for inside distribution use / 1 conductor
• 2 X AWG 12-10 cable lugs - #8 ring
• 4 X AWG 12-10 cable lugs - 1/4'' ring
• 2 X AWG 12-10 cable lugs - 3/8'' ring
• 1 X AWG 16-14 cable lugs - #8 ring

RV - DC-DC Charger Kit

• 1 X Victron Energy – Orion-Tr Smart 12/12-30A (360W) Non-Isolated DC-DC Charger
• 1 X 36" #6 Solar charge controller cables (pair) - 3/8" lug on one end
• 1 X 25" Red #6 battery interconnection cable
• 1 X 5" Black #6 battery interconnection cable
• 5 X #6 cable lugs - 3/8'' ring
• 2 X MEGA-fuse 60A 80V
• 2 X MEGA-fuse 40A 80V
• 1 X Victron Energy Fuse Holder for MEGA-fuse

RV - 12/1200 Inverter/Charger Kit

• 1 X Victron Energy MultiPlus 12/1200/50-16 - 120V VE.bus
• 1 X 24" #2 Solar charge controller cables (pair) - 3/8" lug on one end
• 2 X MEGA-fuse 200A 80V

Wire Ducts

• 2 X Plastic Wire Duct - 36 inches.Victron Energy
