RV Kit D - 400Ah battery with 395W solar panel
This kit allows the mentioned loads below to be powered for 48 hours (typical use).
12V Appliances
120V Appliances

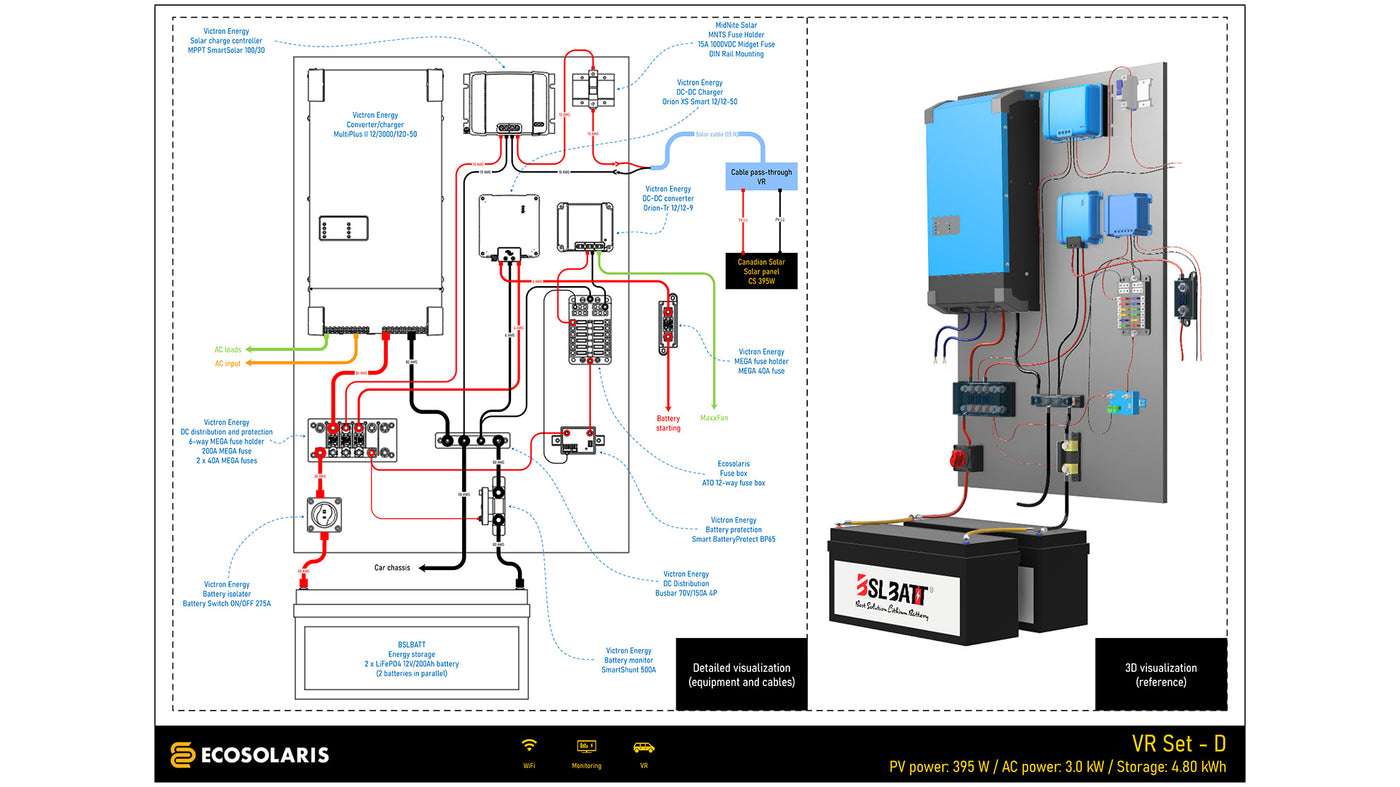

DIAGRAM
Designed to power most of your devices, this solar kit includes all the necessary components to keep them running for 2 days.
Explore the list below to see the appliances it supports and take the first step toward energy independence today!
Details
AC Power: 3kW
Storage: 4.8 kWh
The kit includes:
RV - 395W Solar Panel Kit - detail
- 1 X Canadian Solar – Hiku6 – 395W Monocrystalline Solar Panel
- 1 X Solar Panel Cable Entry Gland (White)
- 1 X MidNite Solar Baby Box enclosure
- 1 X MidNite Solar, 15A, 150 VDC, DIN rail mount breaker, 13mm wide
- 1 X Universal “Z” bracket roof mounting system for solar panel
Solar cable - detail
- 1 X Boat cable #10 for solar panel with MC4 connector - 20ft
RV - 100V/30A Charge Controller Kit - detail
- 1 X Victron Energy SmartSolar MPPT 100/30 Solar Charge Controller
- 1 X MidNite Solar, 40A, 150 VDC, DIN rail mount breaker, 13mm wide
- 4 X AWG 10 cable lugs - 3/8'' ring
RV - 2X 200Ah LiFePO4 Battery Kit - detail
- 2 X BSLBATT – 12V/200Ah LiFePO4 Battery - detail
- 1 X Victron Energy Fuse holder 6-way for MEGA-fuse - detail
- 1 X Victron Energy SmartShunt IP65 500A - detail
- 2 X 36'' #2 Black jumper battery interconnection cable with lugs - detail
- 1 X Victron Energy Battery Switch ON/OFF 275A - detail
- 1 X Victron Energy Orion-Tr 12/12-9A (110W) Isolated DC-DC Converter - detail
- 1 X 12-way fuse holder for ATO fuse - detail
- 1 X Victron Energy Smart BatteryProtect 12/24V-65A - detail
RV - 12/12-50 DC-DC Charger Kit - detail
- 1 X Victron Energy Energy Orion XS 12/12-50A DC-DC battery charger - detail
- 1 X 25'' Red #6 battery interconnection cable - detail
- 1 X 5'' Black #6 battery interconnection cable - detail
- 6 X AWG 6 cable lugs - 3/8'' ring - detail
- 3 X MEGA-fuse 60A 32V fuse - detail
- 1 X Victron Energy Fuse Holder for MEGA-fuse - detail
RV - 12/3000 Inverter/Charger Kit - detail
- 1 X Victron Energy MultiPlus-II 12/3000/120-50 120V (UL certified) Inverter/Charger - detail
- 1 X 36'' #2/0 Black jumper battery interconnection cable with lugs - detail
- 1 X 36'' 2/0 Red jumper battery interconnection cable with lugs - detail
- 2 X MEGA-fuse 400A 32V fuse - detail
- 1 X Victron Energy Fuse Holder for MEGA-fuse - detail
Wire Ducts - detail
- 2 X Plastic Wire Duct - 36 inches.
