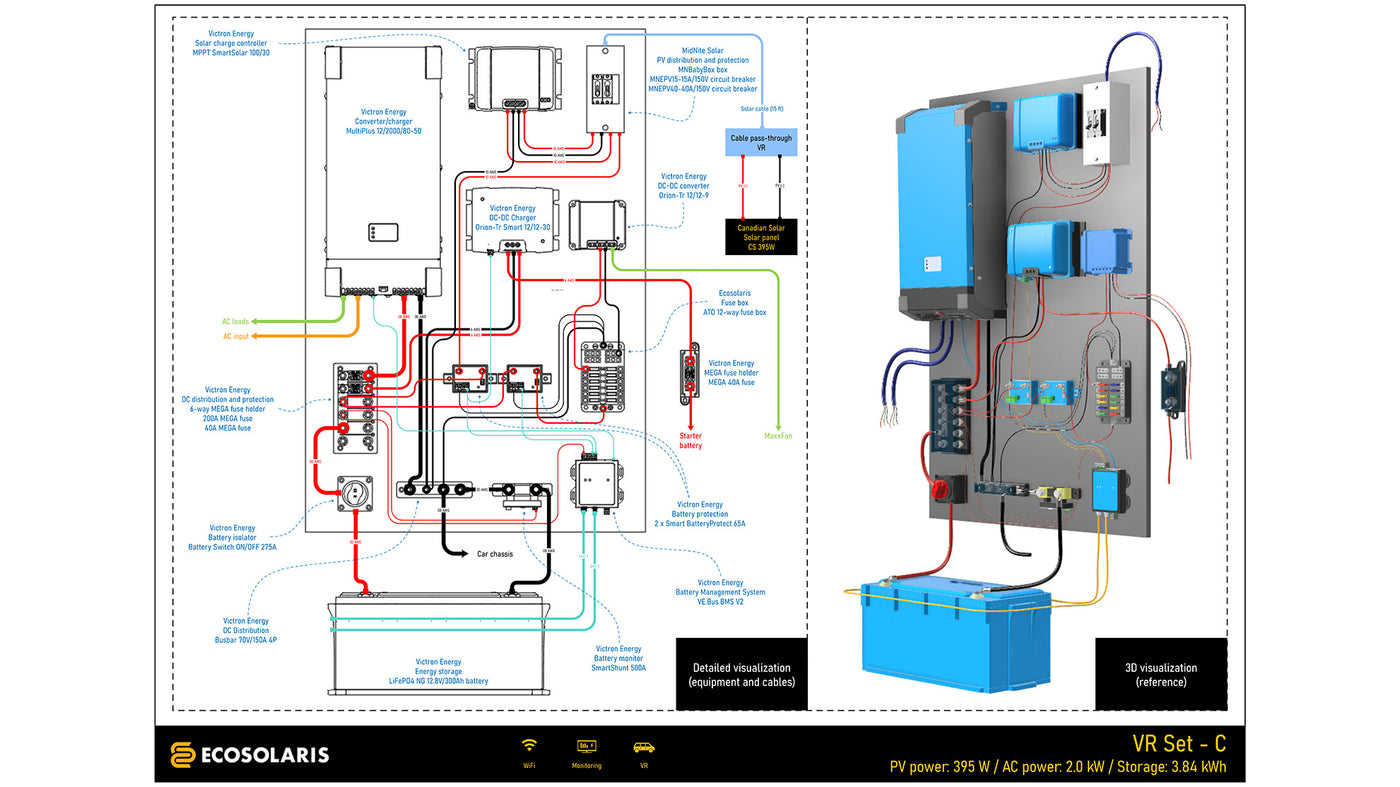

RV Kit C - 300Ah battery with 395W solar panel

395W Solar Panel Kit

• 1 X Canadian Solar – Hiku6 – 395W Monocrystalline Solar Panel
• 1 X #10 Electric Solar Boat Cable - 2 conductors - 15 ft
• 1 X Solar Panel Cable Entry Gland (White)
• 1 X MidNite Solar Baby Box enclosure
• 1 X MidNite Solar, 15A, 150 VDC, DIN rail mount breaker, 13mm wide
• 1 X Universal “Z” bracket roof mounting system for solar panel

100V/30A Charge Controller Kit

• 1 X Victron Energy SmartSolar MPPT 100/30 Solar Charge Controller
• 1 X MidNite Solar, 40A, 150 VDC, DIN rail mount breaker, 13mm wide
• 1 X 36'' #10 Solar charge controller cables (pair) - 3/8" lug on one end

300Ah LiFePO4 Battery Kit

• 1 X Victron Energy – 12V/300Ah Lithium LifePO4 NG Battery
• 1 X 36" #2/0 Black Jumper battery interconnection cable with lugs
• 1 X 36" #2/0 Red Jumper battery interconnection cable with lugs
• 1 X Victron Energy VE.Bus BMS V2
• 1 X Victron Energy RJ45 UTP Cable 1.8m
• 1 X 10' Black #18 Electrical cable for inside distribution use / 1 conductor
• 1 X Victron Energy Fuse holder 6-way for MEGA-fuse
• 1 X Victron Energy – Busbar – 4 Studs – 70V/150A
• 1 X Victron Energy SmartShunt 500A
• 1 X Victron Energy Battery Switch ON/OFF 275A
• 1 X 12'' #2/0 Black Jumper battery interconnection cable with lugs
• 1 X 12'' #2/0 Red Jumper battery interconnection cable with lugs
• 1 X Victron Energy Orion-Tr 12/12-9A (110W) Isolated DC-DC Converter
• 1 X 12-way fuse holder for ATO fuse
• 2 X Victron Energy Smart BatteryProtect 12/24V-65A
• 2 X AWG 16-14 cable lugs - #8 ring
• 1 X 10' Black #10 Electrical cable for inside distribution use / 1 conductor
• 1 X 10' Red #10 Electrical cable for inside distribution use / 1 conductor
• 2 X AWG 12-10 cable lugs - 8# ring
• 6 X AWG 12-10 cable lugs - 1/4" ring
• 3 X AWG 12-10 cable lugs - 3/8" ring

DC-DC Charger Kit

• 1 X Victron Energy – Orion-Tr Smart 12/12-30A (360W) Non-Isolated DC-DC Charger
• 1 X 36'' #6 Solar charge controller cables (pair) - 3/8" lug on one end
• 1 X 25' Red #6 battery interconnection cable
• 1 X 5' Black #6 battery interconnection cable
• 5 X AWG 6 cable lugs - 3/8'' ring
• 2 X MEGA-fuse 60A 80V fuse
• 2 X MEGA-fuse 40A 80V fuse
• 1 X Victron Energy Fuse Holder for MEGA-fuse

12/2000 Inverter/Charger Kit

• 1 X Victron Energy MultiPlus 12/2000/80-50 120V VE.Bus (UL-Certified) Inverter/Charger
• 1 X 24'' #2/0 Black Jumper battery interconnection cable with lugs
• 1 X 24'' #2/0 Red Jumper battery interconnection cable with lugs
• 2 X MEGA-fuse 400A 80V fuse

Wire Ducts

• 2 X Plastic Wire Duct - 36 inches.
