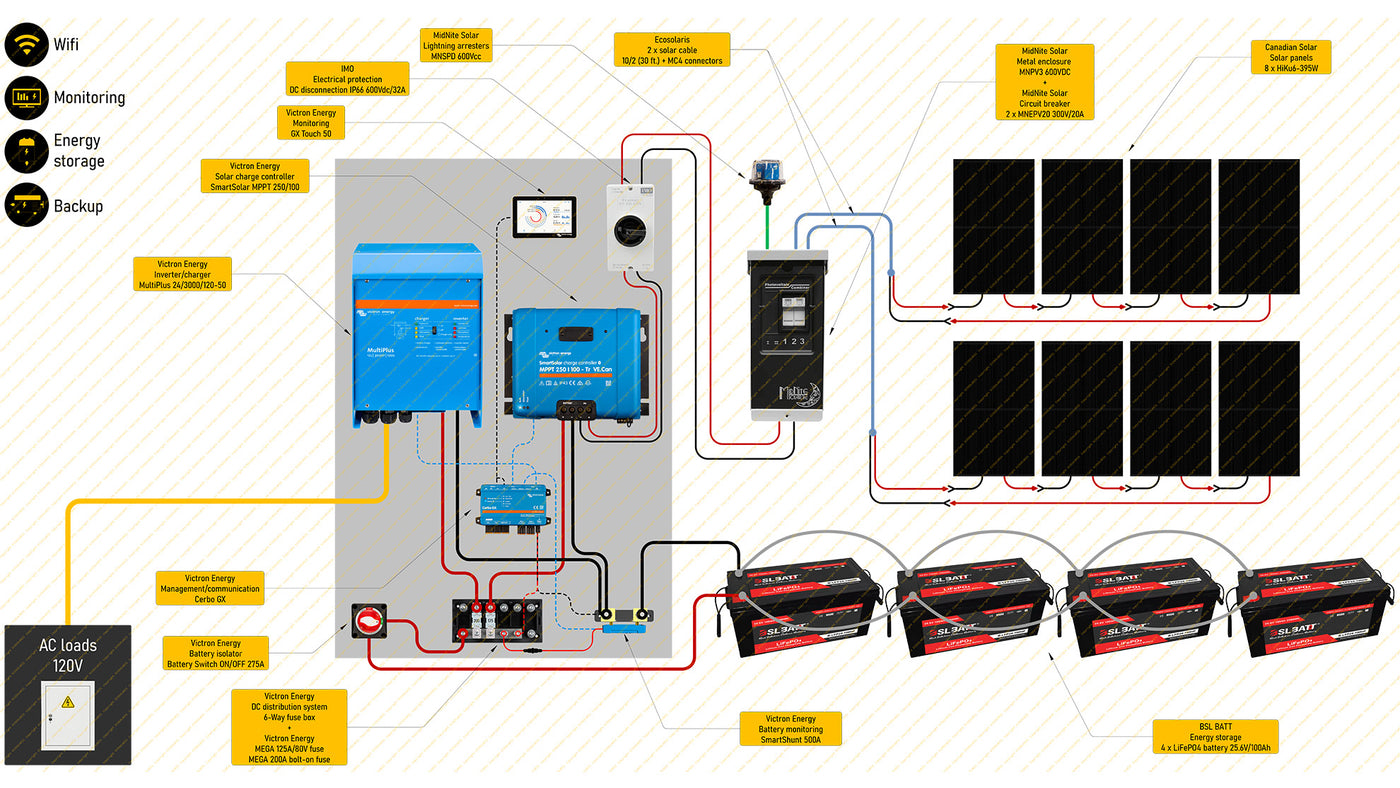

Off-Grid Cottage Kit D - 3160W solar panel kit with lithium batteries

Solar panels, protections and cable

• 8 X Canadian Solar – Hiku6 – 395W Monocrystalline Solar Panel
• 2 X Boat cable #10/2 for solar panel with MC4 connector (30ft)
• 1 X Boat cable #10/2 for solar panel (15ft)
• 1 X MNEPV3 DC Combiner Box for 3 x 150 VDC breakers or 2 x 600 VDC fuse holders
• 1 X MNEPV20 MidNite Solar, 20A, 150 VDC, DIN rail mount breaker, 13mm wide
• 1 X MNSPD-600 MidNite Solar 600 VDC lightning arrestor (for off-grid, controler, combiner)
• 1 X 1-String Solar DC Isolator; 32A/String @ 700VDC


Solar charge controller and protections

• 1 X Victron Energy SmartSolar MPPT 250/100-Tr VE.Can Solar Charge Controller | SCC125110412
• 2 X AWG #2 24 in. Jumper battery interconnection cable with lugs (black)
• 2 X 80V 125A MEGA fuse

Battery, monitor and cables

• 4 X BSLBATT – 24V/100Ah LiFePO4 Battery | BSL-24V-100AH
• 1 X Victron Energy SmartShunt IP65 300A | SHU065130050
• 3 X #2/0 12 in. Jumper battery interconnection cable with lugs (black)
• 2 X #2/0 36 in. Jumper battery interconnection cable with lugs (black)

24V DC Bus Distribution

• 1 X Victron Energy Fuse holder 6-way for MEGA-fuse | CIP050060000
• 1 X Victron Energy Battery Switch ON/OFF 275A | VBS127010010

Inverter / Charger, cables and protection

• 2 X Victron Energy MultiPlus-II 24/3000/70-50 120V (UL certified) Inverter/Charger | PMP242305102
• 2 X 80V 200A MEGA fuse
• 4 X #2/0 24 in. Jumper battery interconnection cable with lugs (black)

Monitoring and Remote Access

• 1 X Victron Energy Cerbo GX | BPP900450100
• 1 X Victron Energy GX Touch 50 | BPP900455050
• 1 X Victron Energy VE.Direct Cable 1.8m (one side Right Angle Connector) | ASS030531218
• Victron Energy RJ45 UTP Cable 1.8m | ASS030064950
