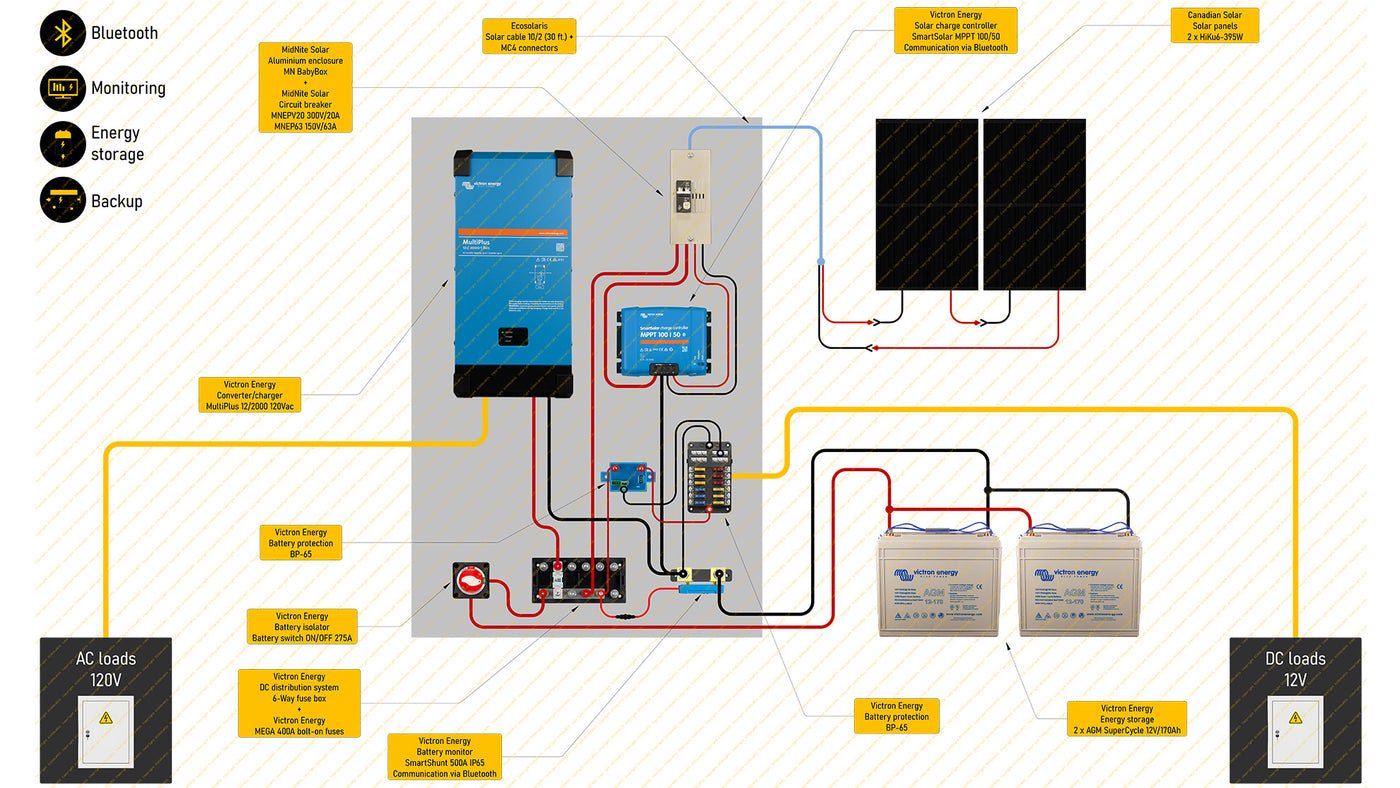

Off-Grid Cottage Kit A - 790W solar panel kit

Solar panels, protections and cable

• 2 X Canadian Solar – Hiku6 – 395W Monocrystalline Solar Panel
• 1 X Boat cable #10 for solar panel with MC4 connector - 30ft
• 1 X MidNite Solar Baby Box enclosure
• 1 X MidNite Solar, 20A, 300 VDC, DIN rail mount breaker, 13mm wide

Solar charge controller and protections

• 1 X Victron Energy SmartSolar MPPT 100/50 Solar Charge Controller
• 2 X MEGA-fuse 60A 80V
• 1 X 36" #6 Solar charge controller cables (pair) - 3/8" lug on one end

2 X 12V/170Ah AGM SuperCycle battery Kit

• 2 X Victron Energy – 12V/170Ah Super Cycle AGM Battery
• 1 X Victron Energy Fuse holder 6-way for MEGA-fuse
• 1 X Victron Energy SmartShunt 500A
• 1 X #2/0 12'' Black Jumper battery interconnection cable with lugs
• 1 X #2/0 12'' Red Jumper battery interconnection cable with lugs
• 1 X #2/0 36'' Black Jumper battery interconnection cable with lugs
• 1 X #2/0 36'' Red Jumper battery interconnection cable with lugs
• 1 X Victron Energy Battery Switch ON/OFF 275A
• 1 X 12-way fuse holder for ATO fuse
• 1 X Victron Energy Smart BatteryProtect 12/24V-65A
• 1 X AWG 16-14 cable lugs - #8 ring
• 1 X 5' Black electrical cable for inside distribution use #10 / 1 conductor
• 1 X 5' Red electrical cable for inside distribution use #10 / 1 conductor
• 4 X AWG 12-10 cable lugs - 1/4" ring
• 2 X AWG 12-10 cable lugs - 3/8" ring

Inverter / Charger, cables and protection

• 1 X Victron Energy MultiPlus 12/2000/80-50 120V VE.Bus (UL Certified) Inverter/Charger
• 1 X #2/0 24'' Black Jumper battery interconnection cable with lugs
• 1 X #2/0 24'' Red Jumper battery interconnection cable with lugs (red)
• 2 X 80V 200A MEGA fuse
