Victron Energy | SKU: MPPT-VIC-450V/100A-SS-MC4 | Barcode: 8719076062721

Victron Energy SmartSolar MPPT SS 450/100-MC4 Solar Charge Controller | SCC145110510

Name: Victron Energy SmartSolar MPPT SS 450/100-MC4 Solar Charge Controller | SCC145110510
Brand: Victron Energy
SKU: MPPT-VIC-450V/100A-SS-MC4
Price: 1556.19 CAD
Availability: InStock

$1,556.19 CAD

Shipping calculated at checkout.

The SmartSolar MPPT SS solar charge controllers are Victron's solution for systems with large series connected PV arrays charging 48 V DC battery banks. This product is perfect for large off-grid, and grid connected battery systems.

Warranty

This product is covered by a 5 years limited warranty

Delivery and Shipping

Orders are shipped within 2 business days. If a problem prevents us from shipping your order within this time, we will notify you.

Depending on your delivery location, transit time will vary from 1 day to 5 days

Note for US and Internationnal buyers: the customer is responsible for paying any import costs to the shipping carrier, such as duties, import taxes, or brokerage/disbursement fees which may apply upon delivery.

Datasheets Manual

Victron MPPT Sizing Calculator

Max. PV Voltage

450V
Max. Charge Current

100A
Batteries Bank Voltage

48V

Suggested PV Power - 12V battery

N/A
Suggested PV Power - 24V battery

N/A
Suggested PV Power - 48V battery

5800W

Communication Port(s)

VE.Direct, VE.Can

A table comparing the facets of 4 products
Facet	Product title View details	Product title View details	Product title View details	Product title View details
Price
Price	$99.99	$99.99	$99.99	$99.99
Max. PV voltage
Max. PV voltage
Rated Charge Current
Rated Charge Current
Batteries Voltage
Batteries Voltage
Suggested PV Power with 12V battery bank
Suggested PV Power with 12V battery bank
Suggested PV Power with 24V battery bank
Suggested PV Power with 24V battery bank
Suggested PV Power with 48V battery bank
Suggested PV Power with 48V battery bank

Intro to Victron SmartSolar MPPT RS

Victron SmartSolar - change MPPT setting using bluetooth video cover

Setup and monitor with VictronConnect

The SmartSolar RS charge controller can be remotely controlled and configured over Bluetooth via the VictronConnect app. This allows device set-up, management, and at-a-glance information, such as battery voltage and current, PV voltage and current, historical data and trends.

Daisy Chain Additional Units

The SmartSolar RS charge controller is equipped with VE.Can bus ports. This allows for communication with additional SmartSolar RS & VE.Can MPPT units. The additional units are simply “daisy chained” to each other with an RJ45 cable.When connected to each other, all individual charge controllers, will synchronise their charge stages. They can also send their data, via the same cable, for monitoring to a GX device (such as the Cerbo GX).

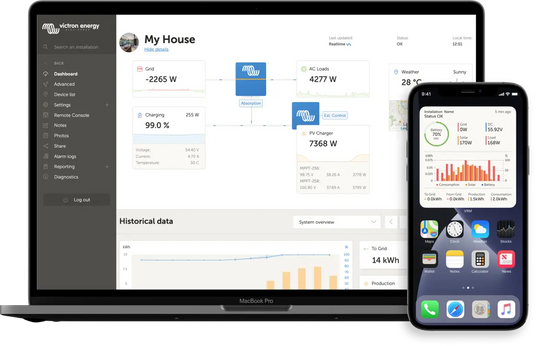

Remote Monitoring and Control

If the GX deviceis connected to the internet, the Victron Remote Management Portal (VRM) provides access to the full power of your SmartSolar RS charge controllers.If your installation is connected to a GX deviceand the internet, Victron Remote Management Portal (VRM) provides access to the full power of your MPPT, anytime, anywhere; for free. For remote installations - even when there is no internet connection nearby - you may be able to monitor your MPPT by connecting the GlobalLink 520.

SmartSolar Display

The SmartSolar RS charge controller is equipped with a display on the front panel. The display reads battery volts, charge current and voltages from both array’s individually including instantaneous and total figures and unit status including any possible error codes.

I/O Connections

The SmartSolar RS charge controller is equipped with a programmable relay and options for remote temperature and voltage sensing. The remote input can accept the Victron smallBMS and other types of BMS with allow-to-charge signals.

Ultra-fast Maximum Power Point Tracking (MPPT) Solar Charge Controller

The MPPT RS SmartSolar is a 48 V Solar charge controller with up to 450 VDC PV input and either 100 A, or 200 A output. It is used in on-grid and off-grid solar applications where maximum battery charging power is required.

Multiple independent MPPT tracking inputs

With multiple MPPT trackers, you can optimize your solar panel design for maximum performance for your specific location.

Isolated PV connections for additional safety

Full galvanic isolation between PV and battery connections provide additional overall system safety.

Wide MPPT voltage range

65 – 450 VDC PV operating range, with a 120 VDC PV startup voltage.

Light weight, efficient and quiet

Thanks to high frequency technology and a new design this powerful charger weighs only 7.9 kg for the 100 A model. In addition to this it has an excellent efficiency, low standby power, and a very quiet operation.

Display and Bluetooth

The display reads battery, and controller parameters.
The parameters can be accessed with a smartphone or other Bluetooth enabled device. In addition, Bluetooth can be used to set up the system and to change settings with VictronConnect.

PV Isolation resistance monitoring for peace of mind at higher voltages

The MPPT RS continuously monitors the PV array and can detect if there are faults that reduce the isolation of the panels to unsafe levels.

VE.Can and VE.Direct port

For connection to a GX device for system monitoring, data logging, and remote firmware updates. VE.Can allows for up to 25 units to be connected together in parallel and synchronize their charging.

I/O Connections

Programmable Relay, temperature sensor, auxiliary, digital input and voltage sensor connections. The
remote input can accept the Victron smallBMS, and other BMS with allow-to-charge signal.
