A solar charger gathers energy from your solar panels, and stores it in your batteries. Using the latest, fastest technology, SmartSolar maximises this energy-harvest, driving it intelligently to achieve full charge in the shortest possible time. SmartSolar maintains battery health, extending its life.

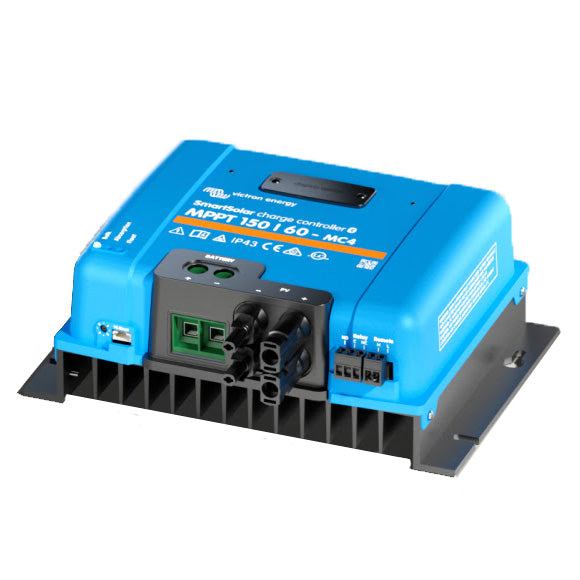

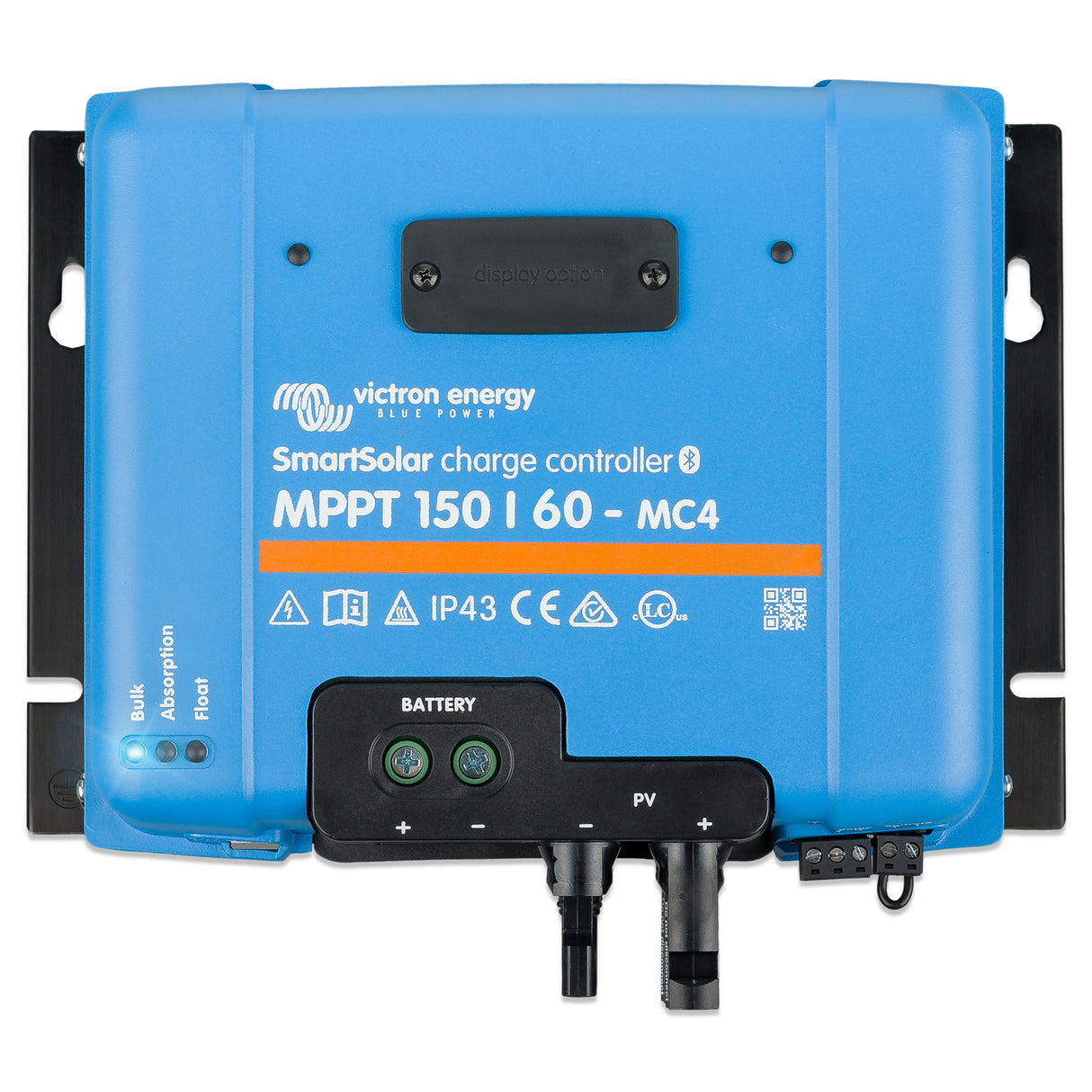

Victron Energy SmartSolar MPPT 150/60-MC4 Solar Charge Controller
is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Warranty
This product is covered by a 5 years limited warranty
Delivery and Shipping
Orders are shipped within 2 business days. If a problem prevents us from shipping your order within this time, we will notify you.
Depending on your delivery location, transit time will vary from 1 day to 5 days
Note for US and Internationnal buyers: the customer is responsible for paying any import costs to the shipping carrier, such as duties, import taxes, or brokerage/disbursement fees which may apply upon delivery.
Victron Energy SmartSolar MPPT 150/60-MC4 Solar Charge Controller
The wireless solution to set-up, monitor, update and synchronise SmartSolar Charge Controllers.
Ultra-fast Maximum Power Point Tracking (MPPT)
Especially in case of a clouded sky, when light intensity is changing continuously, an ultra-fast
MPPT controller will improve energy harvest by up to 30 % compared to PWM charge controllers
and by up to 10 % compared to slower MPPT controllers.
Advanced Maximum Power Point Detection in case of partial shading conditions
If partial shading occurs, two or more maximum power points (MPP) may be present on the
power-voltage curve.
Conventional MPPTs tend to lock to a local MPP, which may not be the optimum MPP.
The innovative SmartSolar algorithm will always maximize energy harvest by locking to the
optimum MPP.
Outstanding conversion efficiency
No cooling fan. Maximum efficiency exceeds 98 %.
Flexible charge algorithm
Fully programmable charge algorithm (see the software page on our website), and eightp reprogrammed algorithms, selectable with a rotary switch (see manual for details).
Extensive electronic protection
Over-temperature protection and power derating when temperature is high.
PV short circuit and PV reverse polarity protection.
PV reverse current protection.
Internal temperature sensor
Compensates absorption and float charge voltage for temperature.
Optional external battery voltage, temperature and current sensing via Bluetooth
A Smart Battery Sense, a BMV-712 Smart Battery Monitor or a SmartShunt can be used to
communicate battery voltage and temperature (and current, in case of a BMV-712 or a SmartShunt) to one or more SmartSolar Charge Controllers.
Synchronized parallel charging with Bluetooth
Up to 10 units can be synchronized with Bluetooth.
Fully discharged battery recovery function
Will initiate charging even if the battery has been discharged to zero volts.
Will reconnect to a fully discharged Li-ion battery with integrated disconnect function.
VE.Direct
For a wired data connection to a Color Control GX, other GX products, PC or other devices
Remote on-off
To connect for example to a VE.BUS BMS.
Programmable relay
Can be programmed to trip on an alarm, or other events.
Optional: SmartSolar pluggable LCD display
Simply remove the rubber seal that protects the plug on the front of the controller,
and plug-in the display
How does a Victron Energy MPPT Solar Charge Controller work?
How to change Victron MPPT solar charge controller settings using Bluetooth?
Victron Energy SmartSolar MPPT 150/60-MC4 Solar Charge Controller
$499.90 CAD
Unit price /
Unavailable
A solar charger gathers energy from your solar panels, and stores it in your batteries. Using the latest, fastest technology, SmartSolar maximises this energy-harvest, driving it intelligently to achieve full charge in the shortest possible time. SmartSolar maintains battery health, extending its life.
