Victron Energy  |  SKU: OND-VIC-PHOENIX-48V-250  |  Barcode: 8719076036050

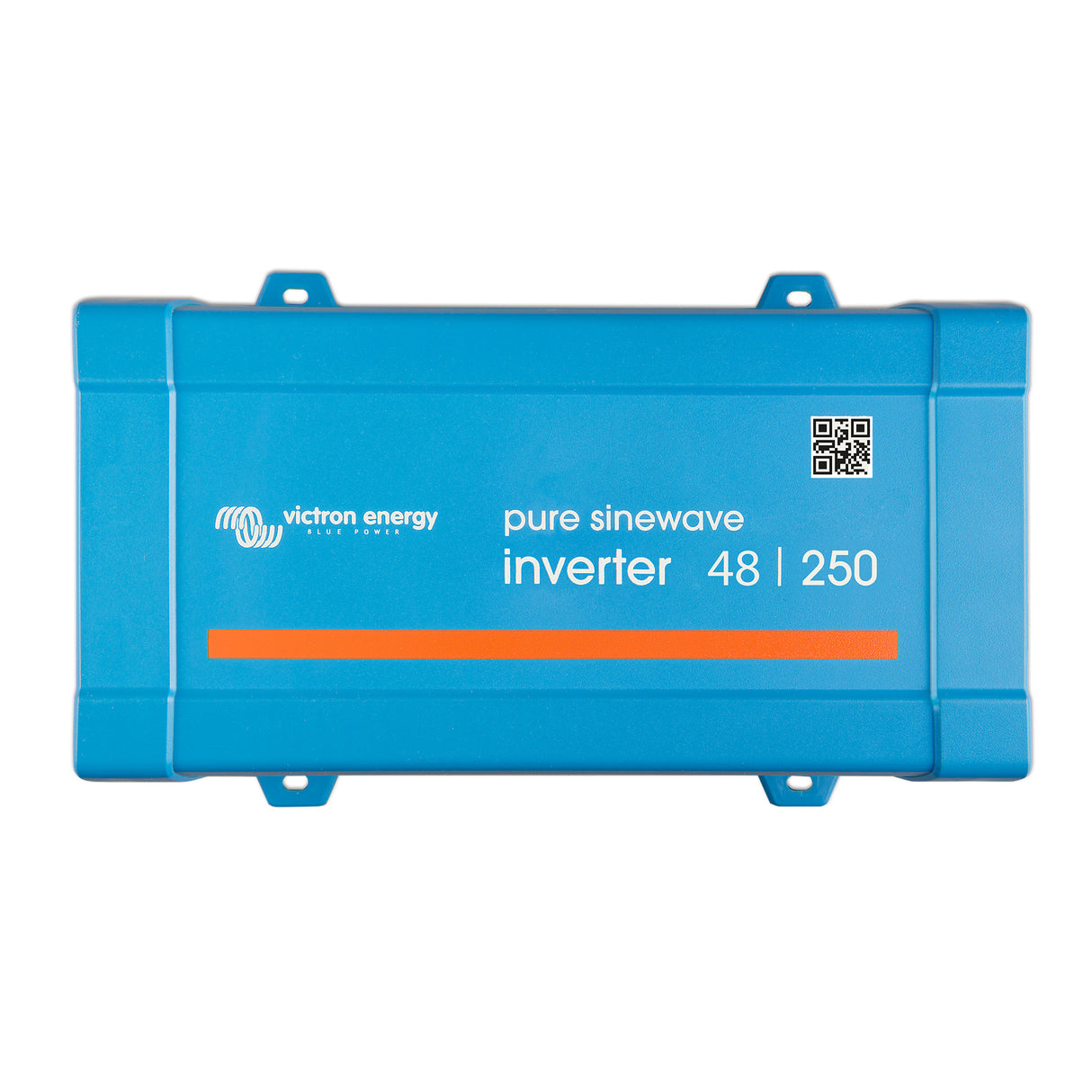

Victron Energy 48/250 120V VE.Direct NEMA 5-15R Phoenix Inverter | PIN482510500

$136.05 CAD
Shipping calculated at checkout.

Inverters allow you to power domestic equipment - requiring 230V/120V AC - using 'leisure' or 'automotive' batteries rated at 12V, 24V or 48V DC.

Warranty

This product is covered by a 5 years limited warranty

Delivery and Shipping

Orders are shipped within 2 business days. If a problem prevents us from shipping your order within this time, we will notify you.

Depending on your delivery location, transit time will vary from 1 day to 5 days

Note for US and Internationnal buyers: the customer is responsible for paying any import costs to the shipping carrier, such as duties, import taxes, or brokerage/disbursement fees which may apply upon delivery.

Datasheets Manual

Victron Energy 48/250 120V VE.Direct NEMA 5-15R Phoenix Inverter | PIN482510500 at a glance

  • DC Input Voltage

    48V

  • AC Output Voltage

    120V

  • Continuous Power

    200W at 25°C

  • Peak Power

    400W

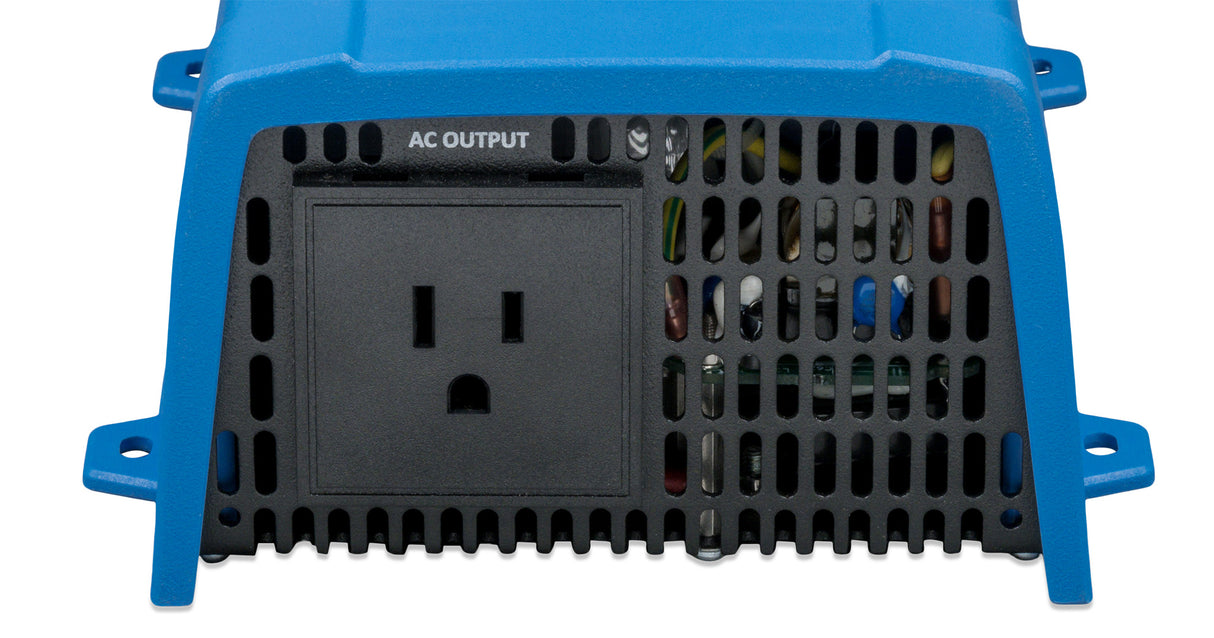

  • AC Socket Type

    NEMA 5-15R

  • Dimensions (H x W x D)

    3.3 X 7.2 X 10.2 in
    85 X 182 X 255 mm

  • Weight

    5.3 lbs / 2.4 kg

  • Communication Port(s)

    VE.Direct

Other available models of Victron Phoenix Inverters

Victron Energy PIN242510510 Phoenix Phoenix Inverter 24/250 120V VE.Direct NEMA GFCI - front
Victron Energy 24/250 120V VE.Direct NEMA GFCI Phoenix Inverter | PIN242510510
View details
Victron Energy PIN242510510 Inverter 24/500 120V VE.Direct NEMA 5-15R front
Victron Energy 24/500 120V VE.Direct NEMA GFCI Phoenix Inverter | PIN245010510
View details
Victron Energy PIN241800510 Phoenix Inverter 24/800 120V VE.Direct NEMA GFCI - front
Victron Energy 24/800 120V VE.Direct NEMA GFCI Phoenix Inverter | PIN241800510
View details
Victron Energy PIN242122500 Phoenix Inverter 24/1200 120V VE.Direct NEMA 5-15R - front
Victron Energy 24/1200 120V VE.Direct NEMA GFCI Phoenix Inverter | PIN242122510
View details
Price
Price
$132.47 CAD
$201.68 CAD
$279.26 CAD
$439.17 CAD
DC Input Voltage
DC Input Voltage
24V
24V
24V
24V
AC Output Voltage
AC Output Voltage
120V
120V
120V
120V
Continuous Power
Continuous Power
200W at 25°C
400W at 25°C
650W at 25°C
1000W at 25°C
Peak Power
Peak Power
400W
900W
1500W
2200W
AC Socket Type
AC Socket Type
NEMA GFCI
NEMA GFCI
NEMA GFCI
NEMA GFCI
Dimensions (H x W x D)
Dimensions (H x W x D)
3.3 X 7.2 X 10.2 in
85 X 182 X 255 mm
3.3 X 7.2 X 10.8 in
85 X 182 X 274 mm
3.3 X 7.2 X 10.8 in
85 X 182 X 274 mm
4.6 X 9.1 X 12.9 in
117 X 232 X 362 mm
Weight
Weight
5.3 lbs / 2.4 kg
8.5 lbs / 3.9 kg
12.0 lbs / 5.5 kg
16.3 lbs / 7.4 kg
Communication Port(s)
Communication Port(s)
VE.Direct
VE.Direct
VE.Direct
VE.Direct

Victron Energy 48/250 120V VE.Direct NEMA 5-15R Phoenix Inverter | PIN482510500

VE.Direct communication port

The VE.Direct port can be connected to:
• A computer (VE.Direct to USB interface cable needed)
• Apple and Android smartphones, tablets, MacBook’s and other devices
(VE.Direct Bluetooth Smart dongle needed)

Fully configurable:

• Low battery voltage alarm trip and reset levels
• Low battery voltage cut-off and restart levels
• Dynamic cut-off: load dependent cut-off level
• Output voltage 210 - 245V
• Frequency 50 Hz or 60 Hz
• ECO mode on/off and ECO mode sense level

Monitoring:

• In- and output voltage, % load and alarms

Proven reliability

The full bridge plus toroidal transformer topology has proven its reliability over many years.
The inverters are short circuit proof and protected against overheating, whether due to overload or high ambient temperature.

High start-up power

Needed to start loads such as power converters for LED lamps, halogen lamps or electric tools.

ECO mode

When in ECO mode, the inverter will switch to standby when the load decreases below a preset value (min load: 15W). Once in standby the inverter will switch on for a short period (adjustable, default: every 2,5 seconds). If the load exceeds a preset level, the inverter will remain on.

Remote on/off

A remote on/off switch can be connected to a two-pole connector, or between battery plus and the left-hand contact of the two-pole connector.

LED diagnosis

Please see manual for a description.

To transfer the load to another AC source: the automatic transfer switch

For our low power inverters, we recommend our Filax Automatic Transfer Switch. The Filax features a very short switchover time (less than 20 milliseconds) so that computers and other electronic equipment will continue to operate withoutd disruption.

DC connection with screw terminals

No special tools needed for installation
