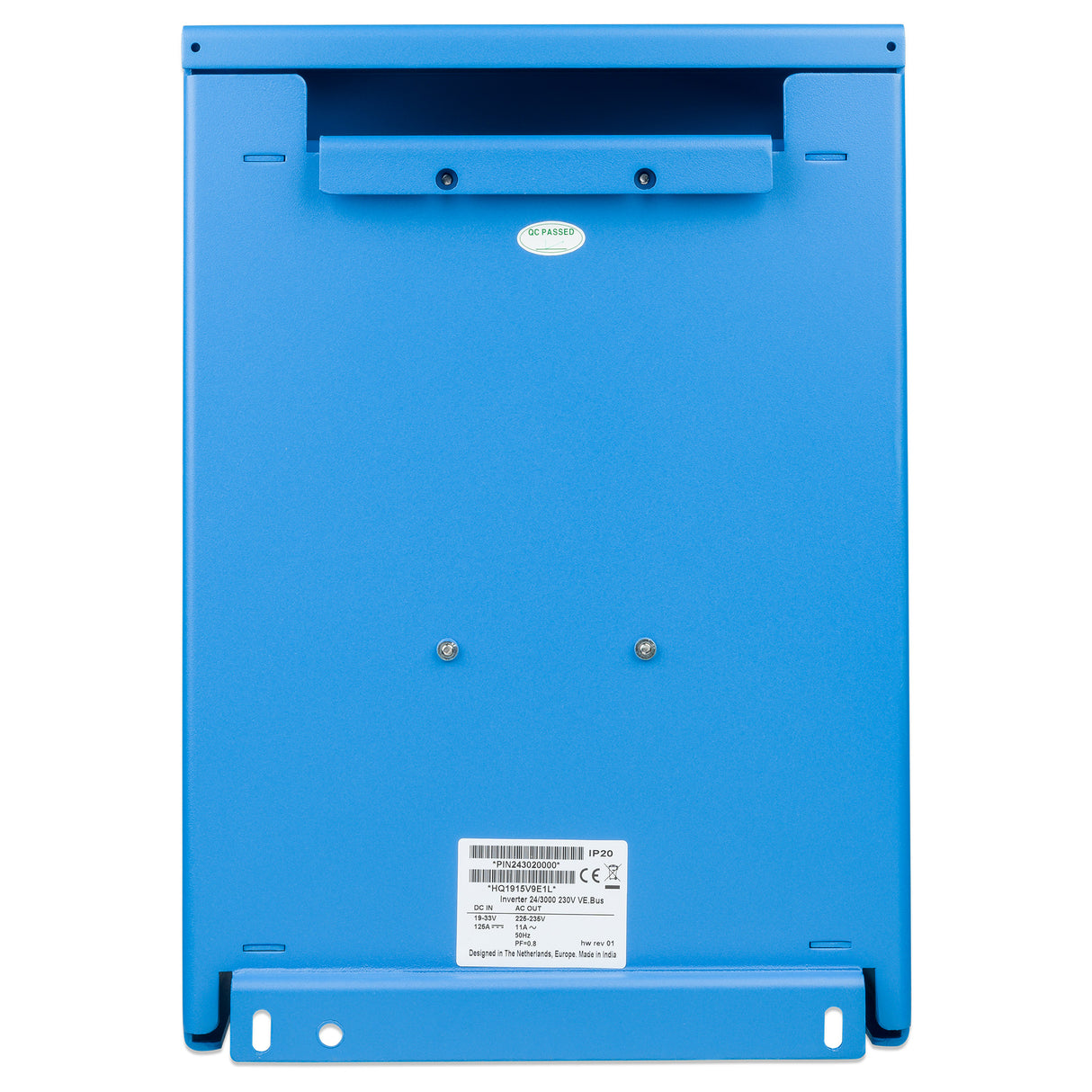

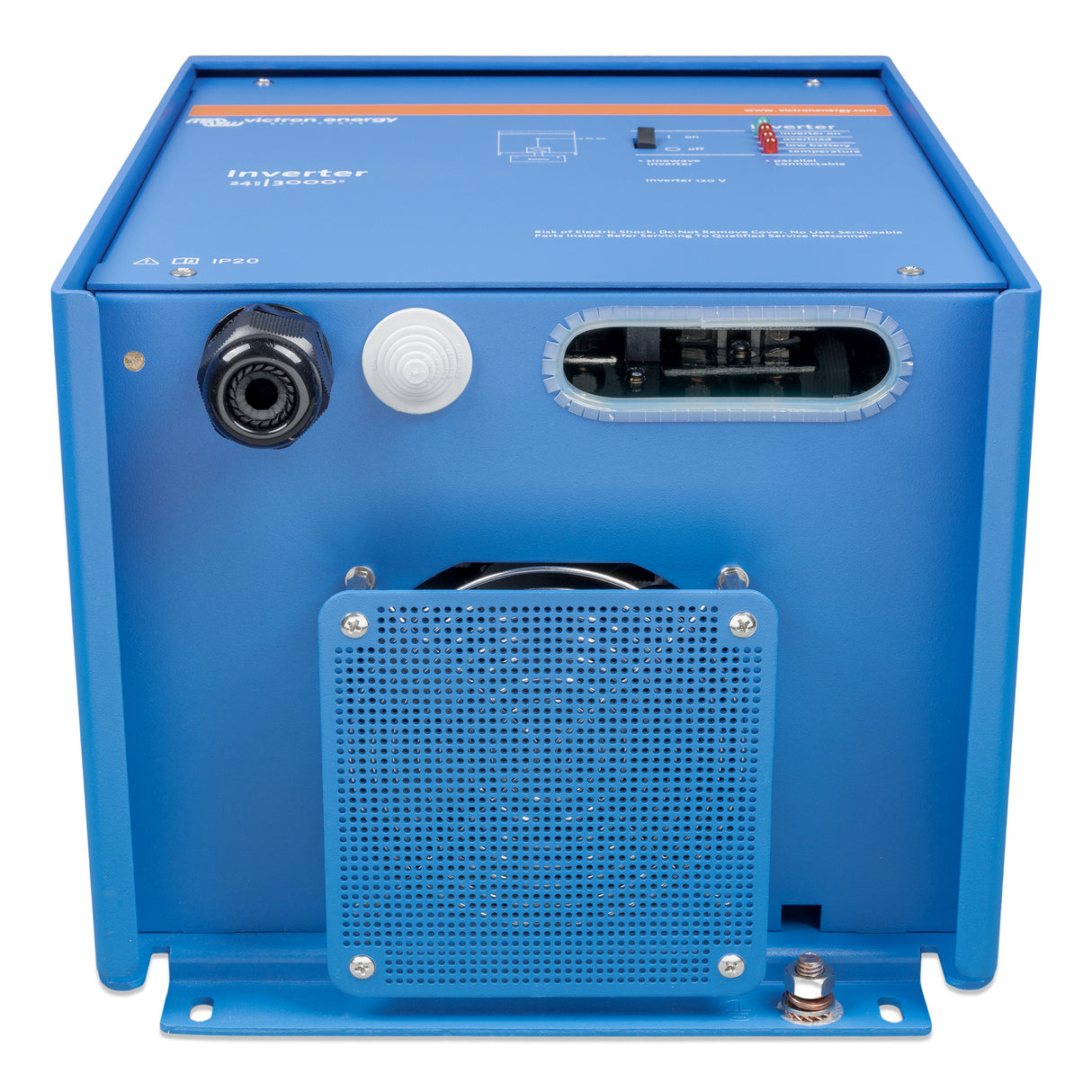

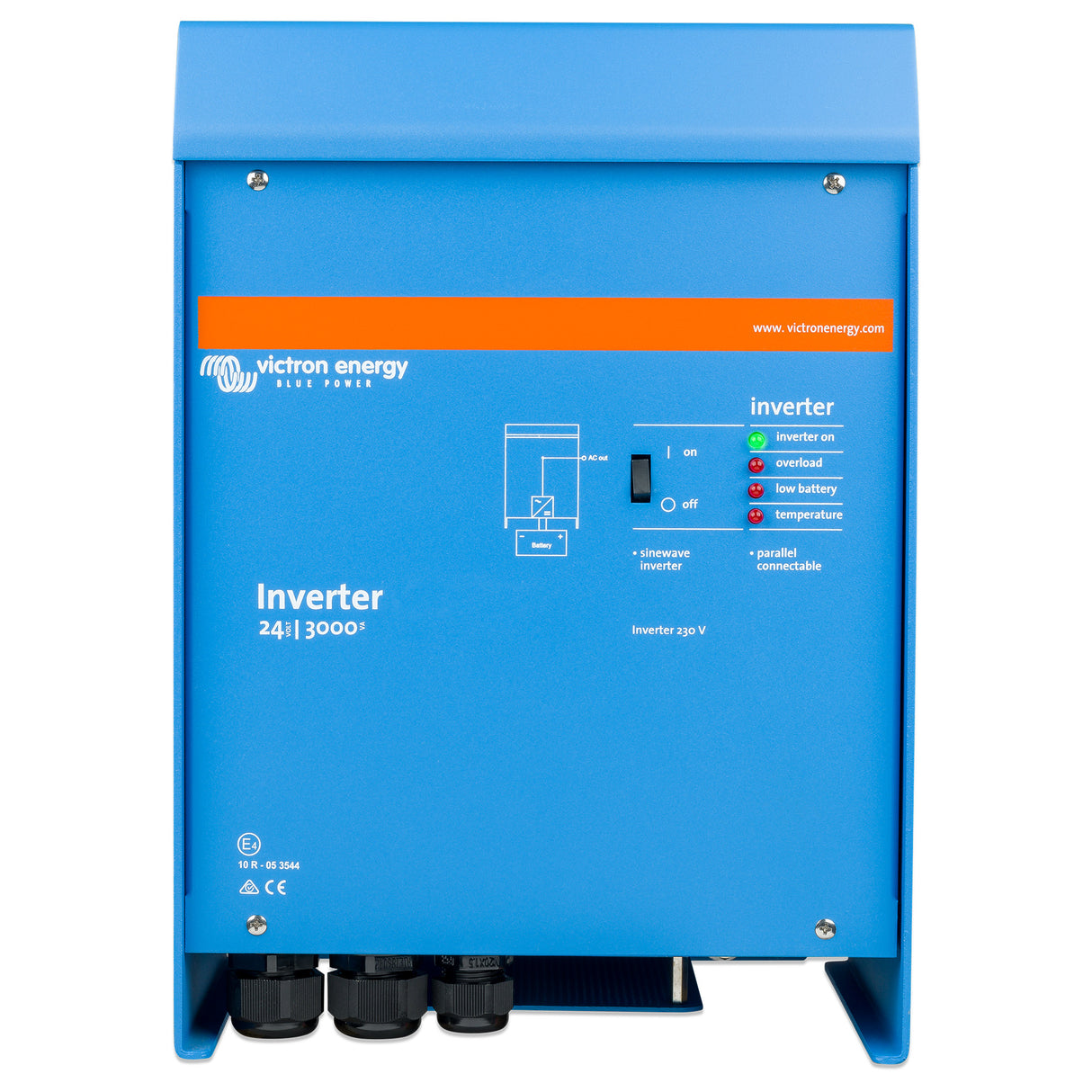

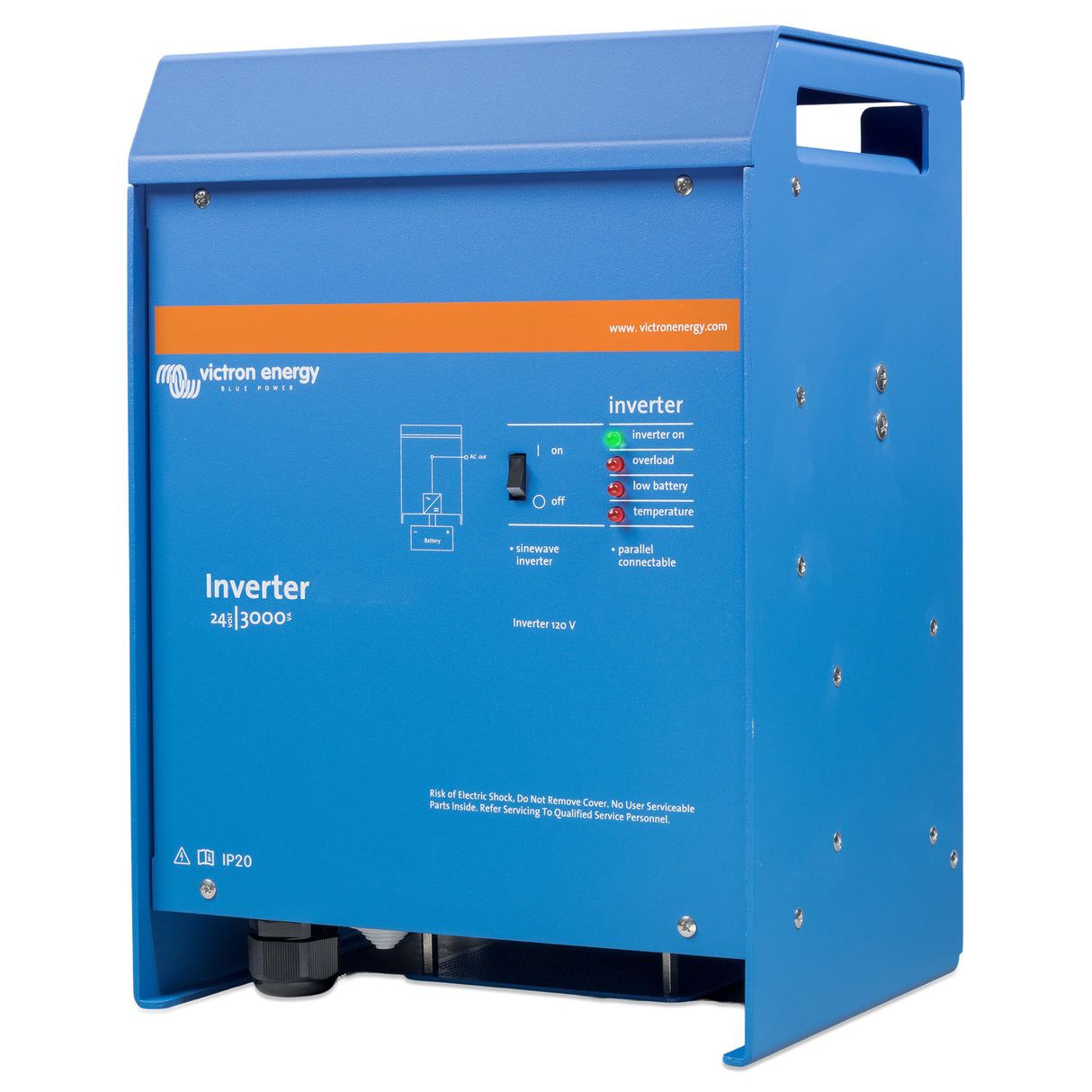

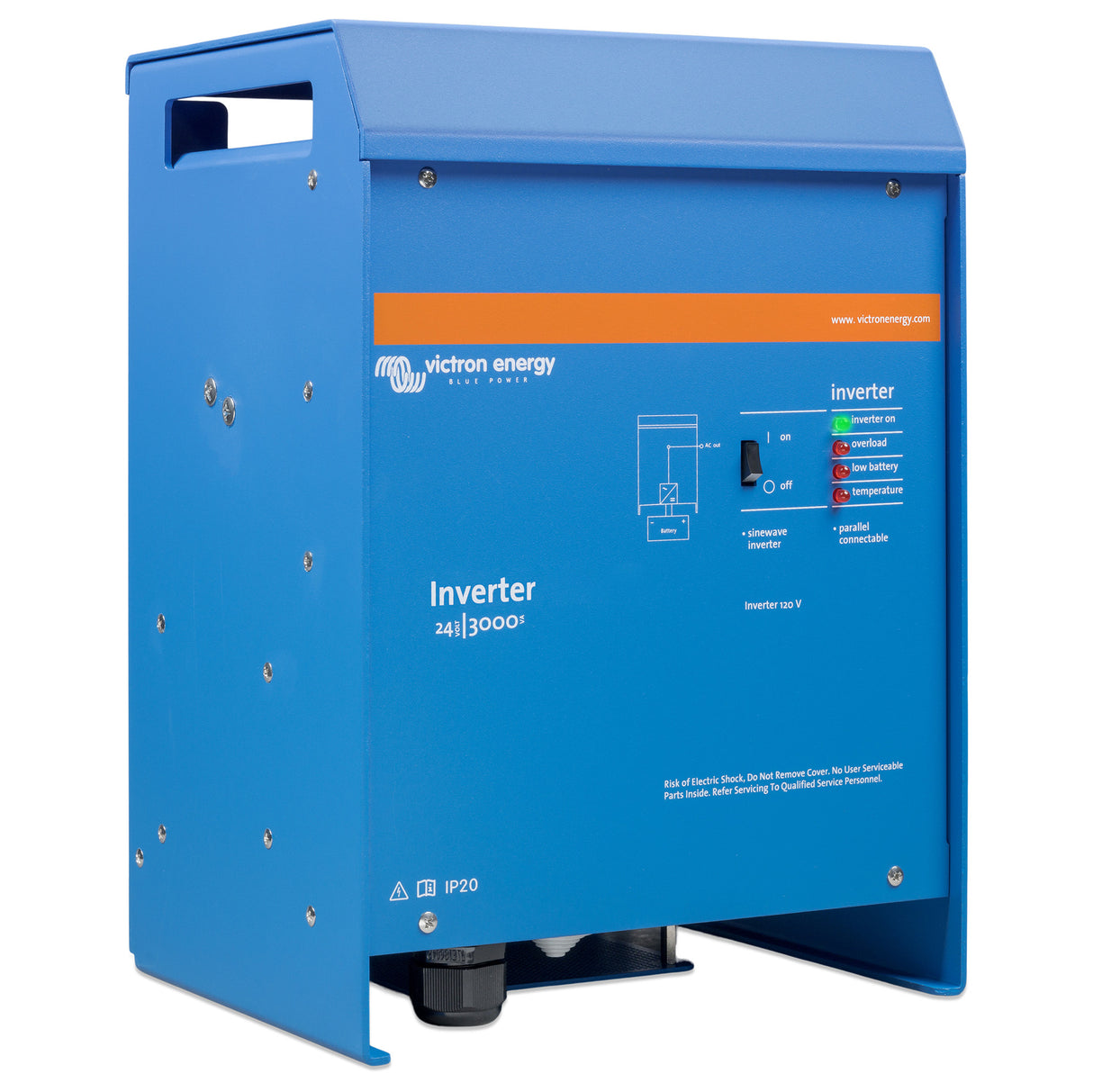

Victron Energy 24/3000 120V VE.Bus Inverter | PIN243020100

SinusMax - Superior engineering

Developed for professional duty, th is range of inverters is suitable for the widest range of applications. The design criteria have been to produce a true sine wave inverter with optimised efficiency but without compromise in performance. Employing hybrid HF technology, the result is a top qu ality product with compact dimensions, light in weight and capa ble of supplying power,problem free , to any load.

Extra start-up power

A unique feature of the SinusMax technology is very high start -up power. Conventional high frequency technology does not offer such extreme performance. These inverters, however, are well suited to power up difficult loads such as refrigeration compressors, electric motors and similar appliances.

Virtually unlimited power thanks to parallel 3 -phase and split phase operation capability

Up to 6 units inverters can operate in parallel to achieve higher power output . Six 24/3000 units, for example, will provide 15 kW / 18 kVA output power . Operation in 3-phase or split phase configuration is also possible.

To transfer the load to another AC source: the automatic transfer switch

If an automatic transfer switch is required we recommend using the MultiPlus inverter/charger instead. The switch is included in these products and the charger function of the MultiPlus can be disabled. Computers and other electronic equipment will continue to operate without disruption because the MultiPlus features a very short switchover time (less than 20 milliseconds).

Communications interface

These larger inverter models come with a VE.Bus port. All you need to connect to your PC is our MK3 -USB VE.Bus to USB interface (see under accessories). Together with our VictronConnect or VEConfigure software, which can be downloaded free of charge from o ur website, parameters of the inverters can be customized. This includes output voltage and frequency, over and under voltage settings and programming the relay. This relay can for example be used to signal several alarm conditions, or to start a generator . The inverters can also be connected to a GX device (eg Cerbo GX) for monitoring and control.

New applications of high power inverters

The possibilities of paralleled high power inverters are truly amazing. For ideas, examples and battery capacity calculations please refer to our book ‘Energy Unlimited’ (available free of charge from Victron Energy and downloadable from www.victronenergy.com ).
