Victron Energy  |  SKU: OND-VIC-QUATTRO-12V/5000W-UL  |  Barcode: 8719076072065

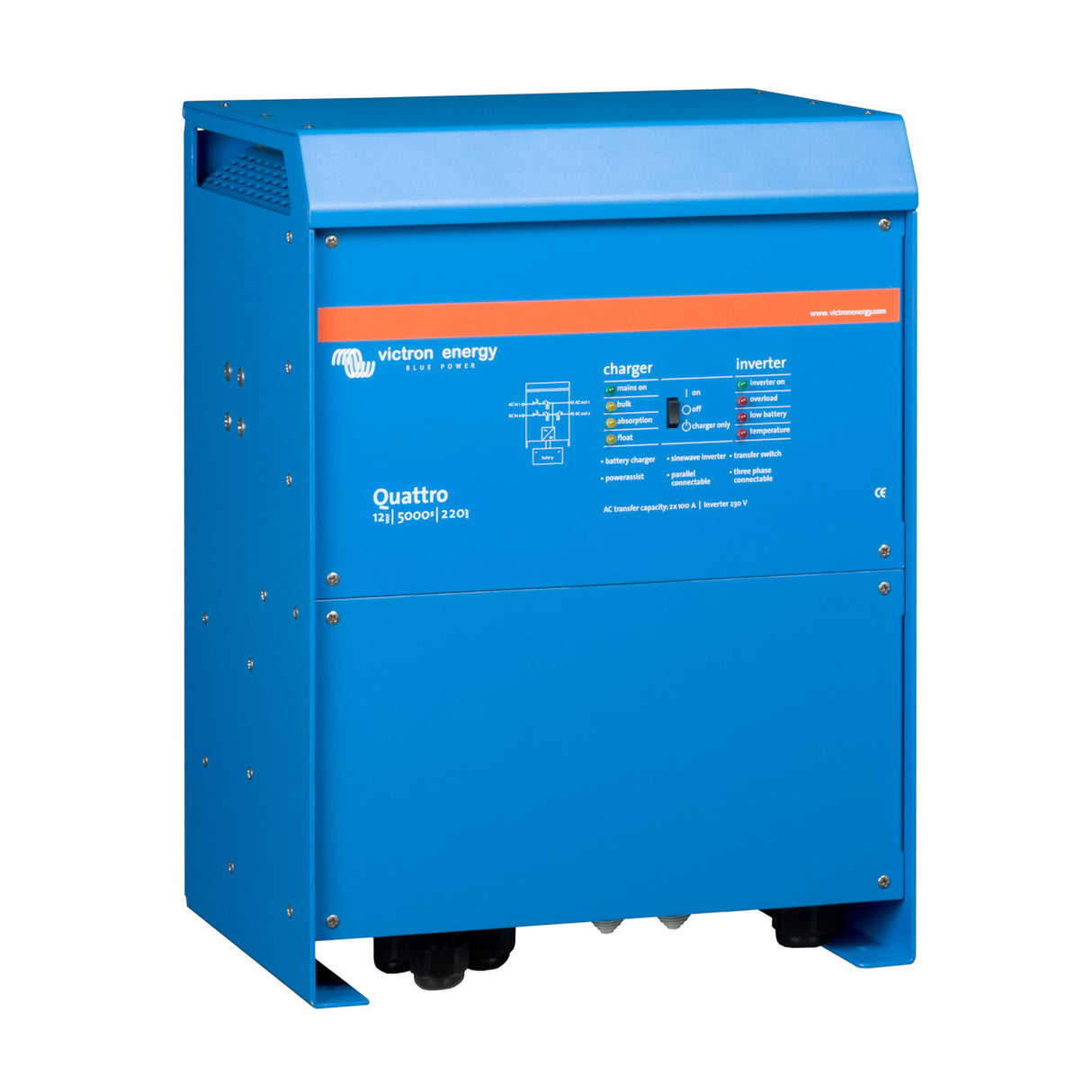

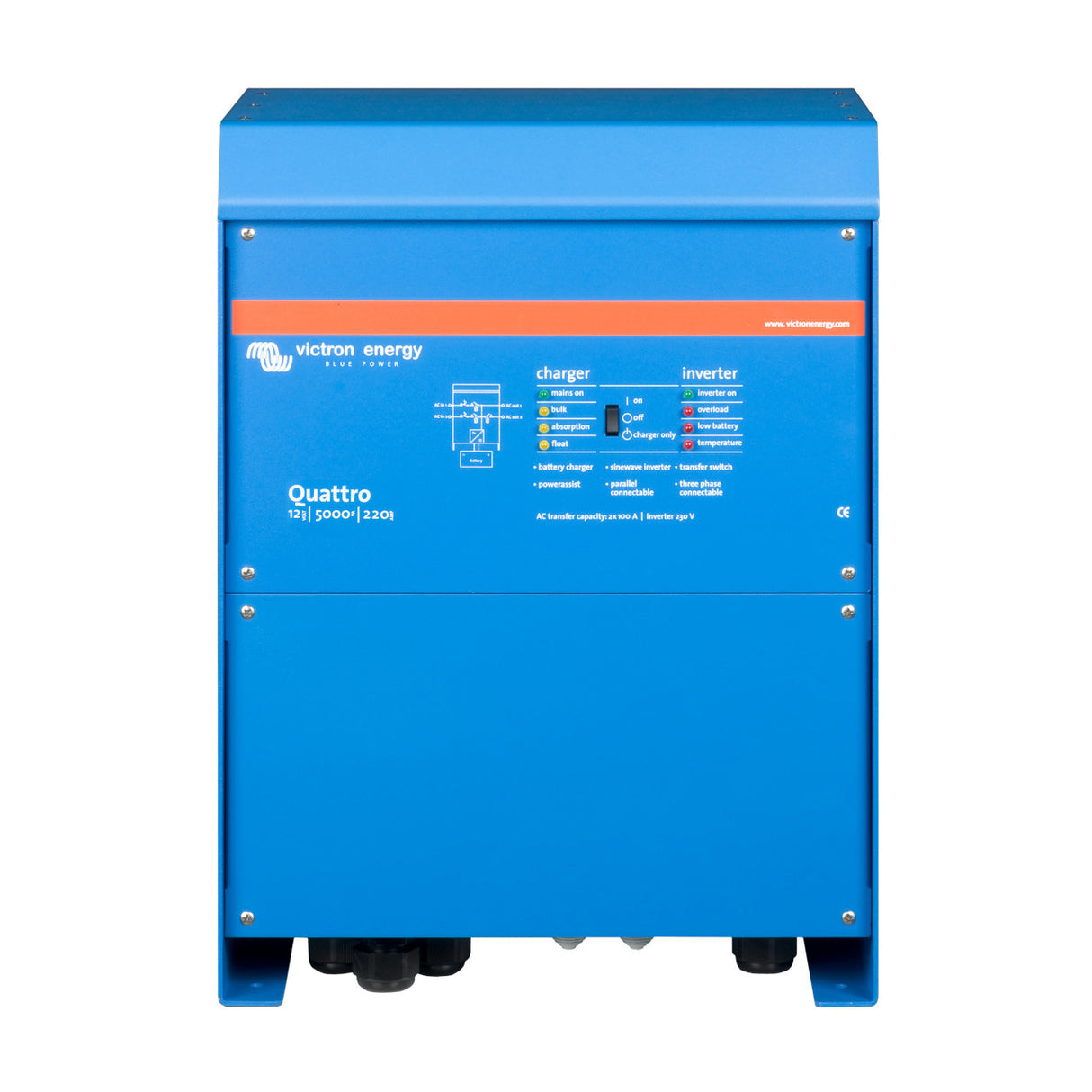

Victron Energy Quattro 12/5000/220-100/100 120V VE.Bus (UL 458 certified) Inverter/Charger | QUA125021102

$3,781.88 CAD
Shipping calculated at checkout.

Similar to the MultiPlus inverter/charger, the Quattro is also a combined inverter and charger. Additionally it can accept two AC inputs and automatically connect to the active source. Its many features include a true sine wave inverter, adaptive charging, hybrid PowerAssist technology plus multiple system integration features such as three or split phase operation and parallel operation.

Warranty

This product is covered by a 5 years limited warranty

Delivery and Shipping

Orders are shipped within 2 business days. If a problem prevents us from shipping your order within this time, we will notify you.

Depending on your delivery location, transit time will vary from 1 day to 5 days

Note for US and Internationnal buyers: the customer is responsible for paying any import costs to the shipping carrier, such as duties, import taxes, or brokerage/disbursement fees which may apply upon delivery.

Datasheets Manual

Victron Energy Quattro 12/5000/220-100/100 120V VE.Bus (UL 458 certified) Inverter/Charger | QUA125021102 at a glance

  • AC Output Voltage

    120V

  • Continuous Power

    4000W at 25°C

  • Peak Power (3 sec.)

    10000W

  • DC Input Voltage

    12V

  • Suggested Battery Cap.

    800 - 2400 Ah

  • DC Charge Current

    220A

  • Number of AC Input

    2 X 120V

  • Transfert Switch

    2 X 100A

  • Number of AC Output

    2 X 120V

  • DC Protection

    800 A

  • Dimensions (H x W x D)

    18.5 X 14.0 X 11.2 in
    470 X 350 X 280 mm

  • Weight

    75 lbs / 34 kg

  • Communication Port(s)

    VE.Bus

  • Cable Gauge

    Less than 5m: 2x AWG 4/0
    5 to 10m: N/A

Other available models of Victron Quattro Inverters/Chargers

Victron Energy QUA122305130 Quattro-II 12/3000 2x120v -front
Victron Energy Quattro-II 12/3000/120-50/50 2x120V Inverter/Charger | QUA122305130
View details
Victron Energy QUA122305130 Quattro-II 12/3000 2x120v -front
Victron Energy Quattro-II 24/3000/70-50/50 2x120V Inverter/Charger | QUA242305130
View details
Victron Energy Quattro QUA483021100 48V 3000 inverter/charger - front
Victron Energy Quattro 48/3000/35-50/50 120V VE.Bus Inverter/Charger | QUA483021100
View details
Victron Energy Quattro QUA245023110 24V 5000 inverter/charger - ront
Victron Energy Quattro 24/5000/120-100/100 120V VE.Bus Inverter/Charger | QUA245023110
View details
Victron Energy Quattro QUA483100102 48V 10000 inverter/charger - front
Victron Energy Quattro 48/10000/140-100/100 120V VE.Bus (UL Certified) Inverter/Charger | QUA483100102
View details
Price
Price
$1,657.63 CAD
$1,575.29 CAD
$1,673.15 CAD
$2,703.05 CAD
$3,330.78 CAD
DC Input Voltage
DC Input Voltage
12V
24V
48V
24V
48V
AC Output Voltage
AC Output Voltage
120V
120V
120V
120V
120V
Continuous Power
Continuous Power
2400W at 25°C
2400W at 25°C
2400W at 25°C
4000W at 25°C
8000W at 25°C
Peak Power
Peak Power
5500W
5500W
6000W
10000W
20000W
DC Charge Current
DC Charge Current
120A
70A
35A
120A
140A
Number of AC Input
Number of AC Input
2 X 120V
2 X 120V
2 X 120V
2 X 120V
2 X 120V
Transfer Switch
Transfer Switch
50A
50A
50A
2 X 100A
2 X 100A
Number of AC Output
Number of AC Output
2 X 120V
2 X 120V
2 X 120V
2 X 120V
2 X 120V
Dimensions
Dimensions
23 X 13 X 7 in
579 X 319 X 168 mm
23 X 13 X 7 in
579 X 319 X 168 mm
14.3 X 10.2 X 8.6 in
362 X 258 X 218 mm
17.5 X 13.0 X 9.6 in
444 X 328 X 240 mm
22.6 X 19.2 X 13.6 in
572 X 488 X 344 mm
Weight
Weight
50 lbs / 22.8 kg
50 lbs / 22.5 kg
42 lbs / 19 kg
66 lbs / 30 kg
128 lbs / 58 kg
Communication Port(s)
Communication Port(s)
VE.Bus
VE.Bus
VE.Bus
VE.Bus
VE.Bus

Victron Energy Quattro 12/5000/220-100/100 120V VE.Bus (UL 458 certified) Inverter/Charger | QUA125021102

Two AC inputs with integrated transfer switch

  • Victron Energy Quattro inverter/charger schema

    The Quattro can be connected to two independent AC sources, for example the public grid and a generator, or two generators. The Quattro will automatically connect to the active source.

Two AC inputs with integrated transfer switch

The Quattro can be connected to two independent AC sources, for example the public grid and a generator, or two generators. The Quattro will automatically connect to the active source.

Two AC Outputs

The main output has no-break functionality. The Quattro takes over the supply to the connected loads in the event of a grid failure or when shore/generator power is disconnected. This happens so fast (less than 20 milliseconds) that computers and other electronic equipment will continue to operate without disruption.

The second output is live only when AC is available on one of the inputs of the Quattro. Loads that should not discharge the battery, like a water heater for example, can be connected to this output.
Split phase and three phase capability

Two units can be configured for split phase, and three units can be configured for three phase output. But that’s not all: up to 4 sets of three units can be parallel connected to provide 96W / 120kVA inverter power and more than 1600A charging capacity.

For more detail please enter parallel in the search box on our website.

PowerControl – Dealing with limited generator, shore side or grid power

A current limit can be set on each AC input. The Quattro will then take account of other AC loads and use whatever isspare for charging, thus preventing the generator or mains supply from being overloaded.

PowerAssist – Boosting shore or generator power

This feature takes the principle of PowerControl to a further dimension allowing the Quattro to supplement the capacity of the alternative source. Where peak power is so often required only for a limited period, the Quattro will make sure that insufficient mains or generator power is immediately compensated for by power from the battery.

When the load reduces, the spare power is used to recharge the battery.

Solar energy: AC power available even during a grid failure

The Quattro can be used in off grid as well as grid connected PV and other alternative energy systems. Loss of mains detection software is available.


System configuring

- In case of a stand-alone application, if settings have to be changed, this can be done in a matter of minutes with a DIP switch setting procedure.
- Parallel and three phase applications can be configured with VE.Bus Quick Configure and VE.Bus System Configurator software.
- Off grid, grid interactive and self-consumption applications, involving grid-tie inverters and/or MPPT Solar Chargers can be configured with Assistants (dedicated software for specific applications).

On-site Monitoring and control

Several options are available: Battery Monitor, Multi Control Panel, Color Control GX or other GX devices, smartphone or tablet (Bluetooth Smart), laptop or computer (USB or RS232).

Remote Monitoring and control

Color Control GX or other GX devices.

Data can be stored and displayed on our VRM (Victron Remote Management) website, free of charge.

Remote configuring

When connected to the Ethernet, systems with a Color Control GX or other GX device can be accessed, and settings can be changed remotely.
