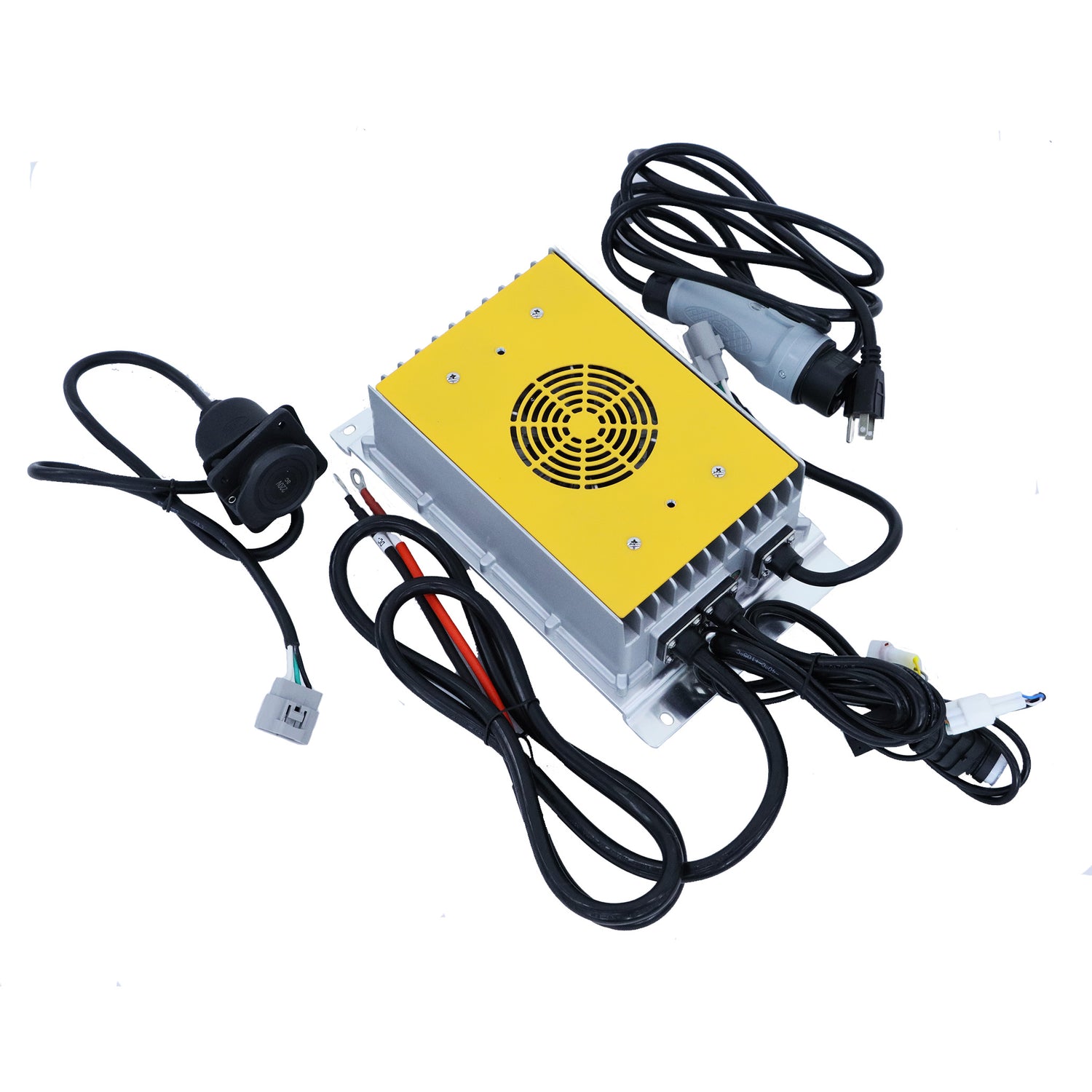

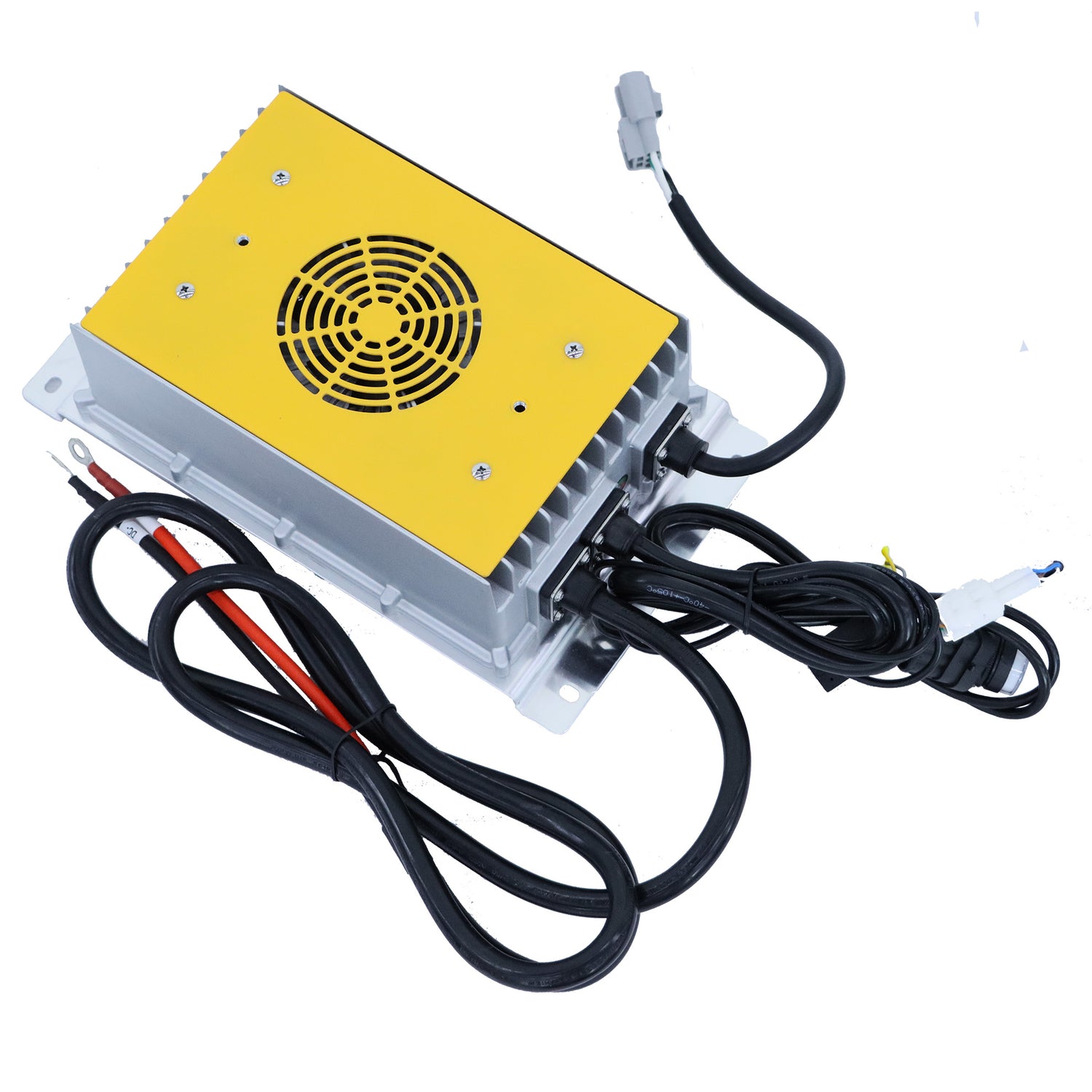

BSLBATTT - 48V/25A on-board golf cart battery charger | BSL4825GC

Product features

• AC Input Voltage Range:90-264VAC；45-65Hz
• AC Input Max Current:11A @90-264VAC
• Power Factor:≥0.99
• Efficiency:≥94.0%
• Noise:≤45dB
• Protection level:IP67


Safety

Active PFC and LLC technique is used for a rapid response on a fault; Quick active software and passive hardware protection on voltage¤t; Advanced charging strategy is applied as safeguard for the battery.

Reliability

The shell is shaped by integrated die casting technique and filled with special glue. This series of chargers had been operated in all kinds of industrial environment (Wet, Hot, Cold, high altitude) for more than ten years to pass verification.

Functions

• CAN BUS Interface;

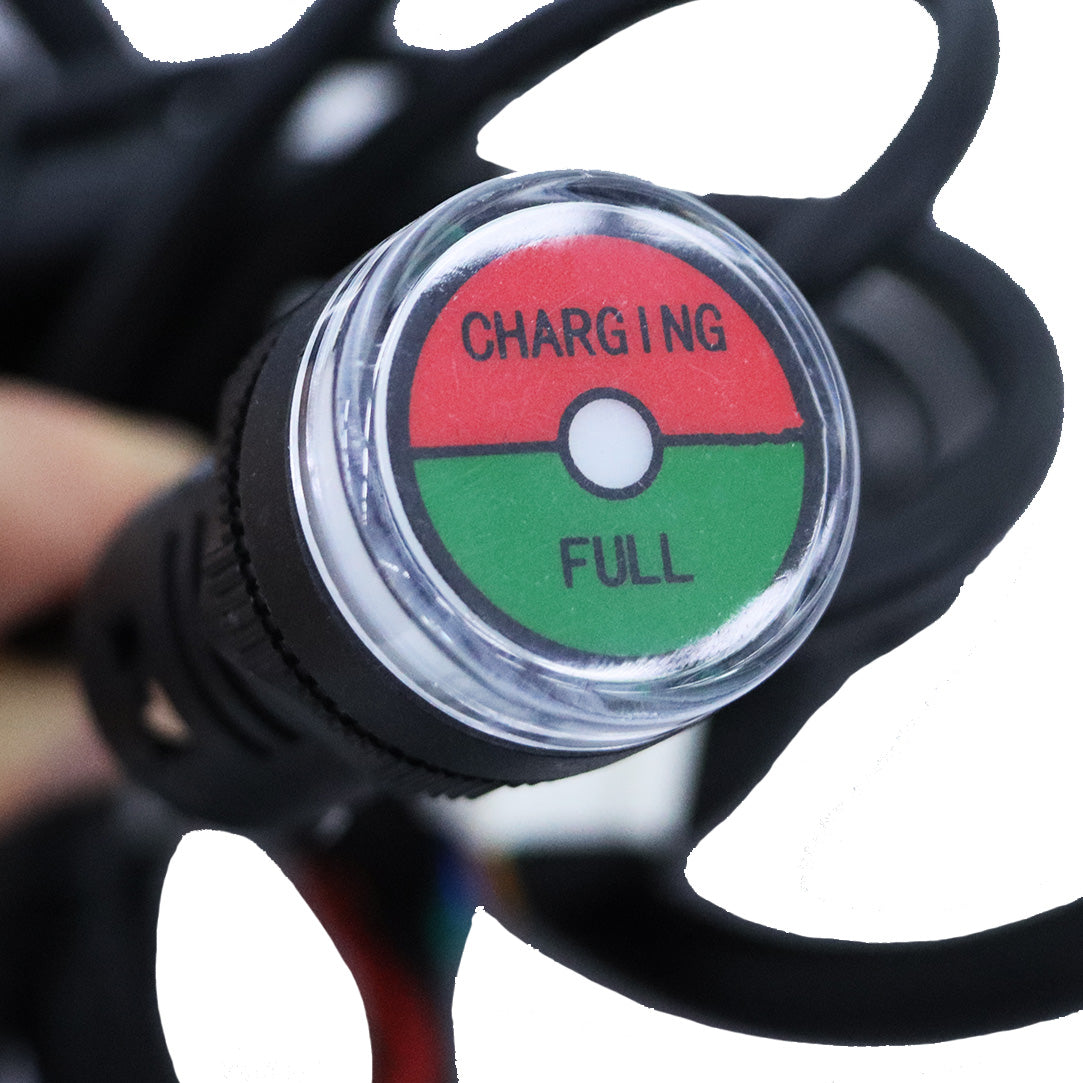

• Triple Colors Indicator;
• Vehicle Charging Lock System;
• Auxiliary power supply for 12V ;

Burnout Protection: If temperature of charger exceeds the limitation, the charger will low down the powerload. If environment temperature exceeds 65 ℃, the charger will stop charging and switch itself to standby mode until the temperature goes down.

Protection for Reverse Connection of Batteries: The circuit inside the charger shuts down when the batteries are connected reversely.

NO-load Protection:There is no output when the battery is not connected.

Short Circuit Protection: The circuit inside the charger will shut down when output is short-circuited.

Automatic shutdown when fully charged:The charger automatically turns off after the battery is fully charged.
