Victron Energy  |  SKU: MON-VIC-NUCLEO-GX  |  Barcode: 8719076075943

Victron Energy Nucleo GX | BPP900453100

$288.80 CAD
Shipping calculated at checkout.

The Nucleo GX is a compact, high-performance communication centre for monitoring and controlling your Victron system. It offers fast system response, reliable connectivity, and flexible expansion via USB accessories. Ideal for VE.Can-based installations such as RS systems, it provides full GX functionality with simple setup and seamless remote access through VRM, LAN, or WiFi

Warranty

This product is covered by a 5 years limited warranty

Delivery and Shipping

Orders are shipped within 2 business days. If a problem prevents us from shipping your order within this time, we will notify you.

Depending on your delivery location, transit time will vary from 1 day to 5 days

Note for US and Internationnal buyers: the customer is responsible for paying any import costs to the shipping carrier, such as duties, import taxes, or brokerage/disbursement fees which may apply upon delivery.

Technical Specifications User manual

Victron Energy Nucleo GX | BPP900453100

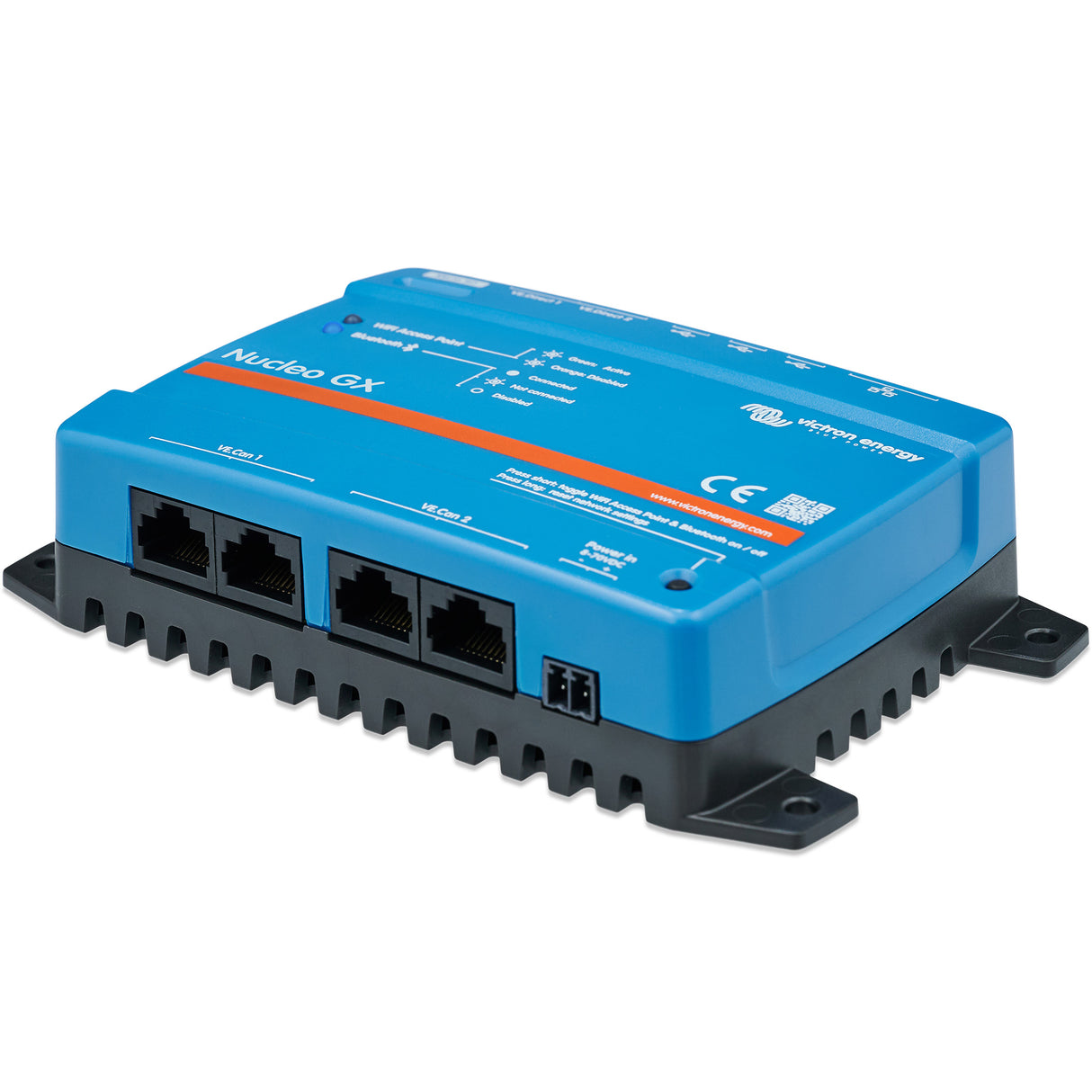

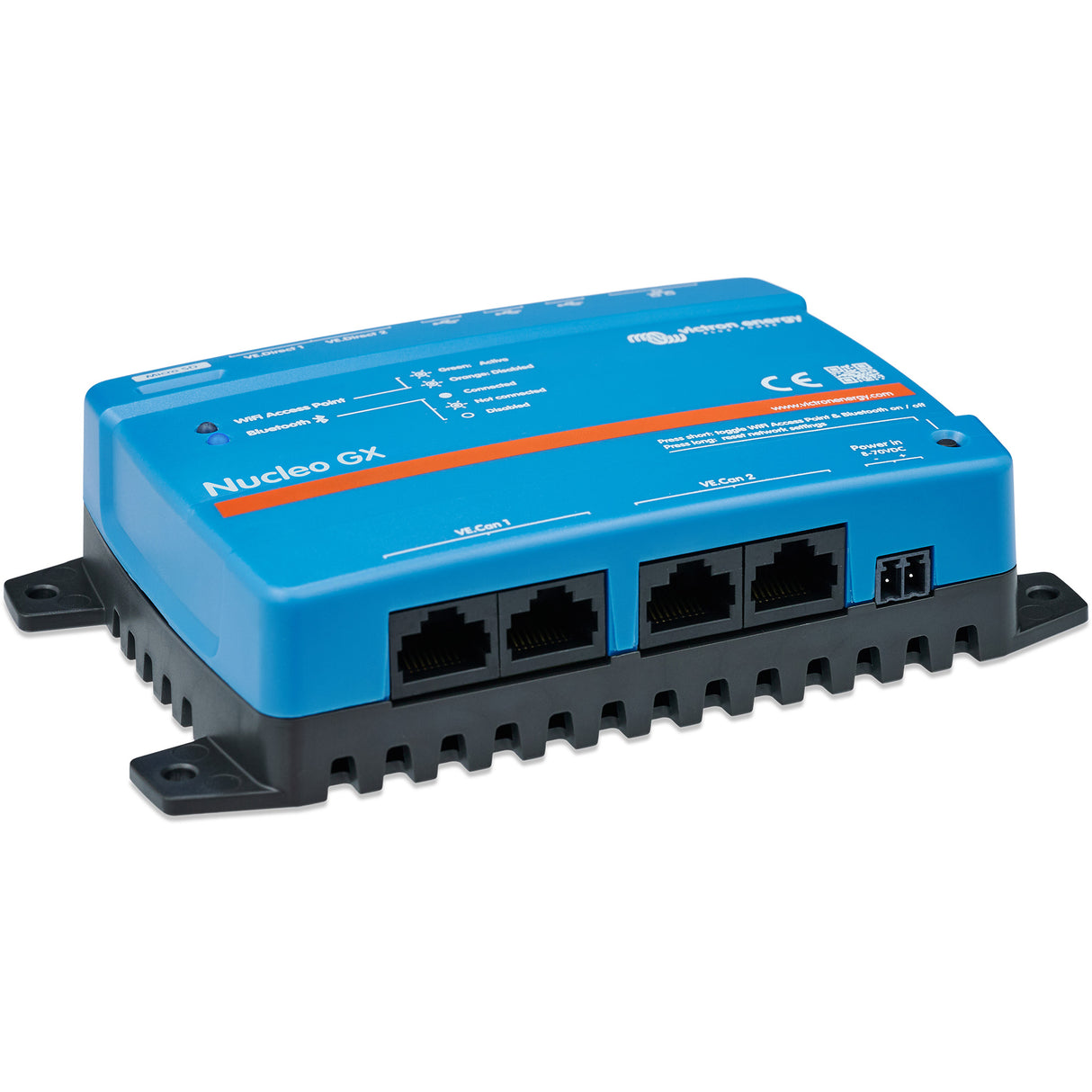

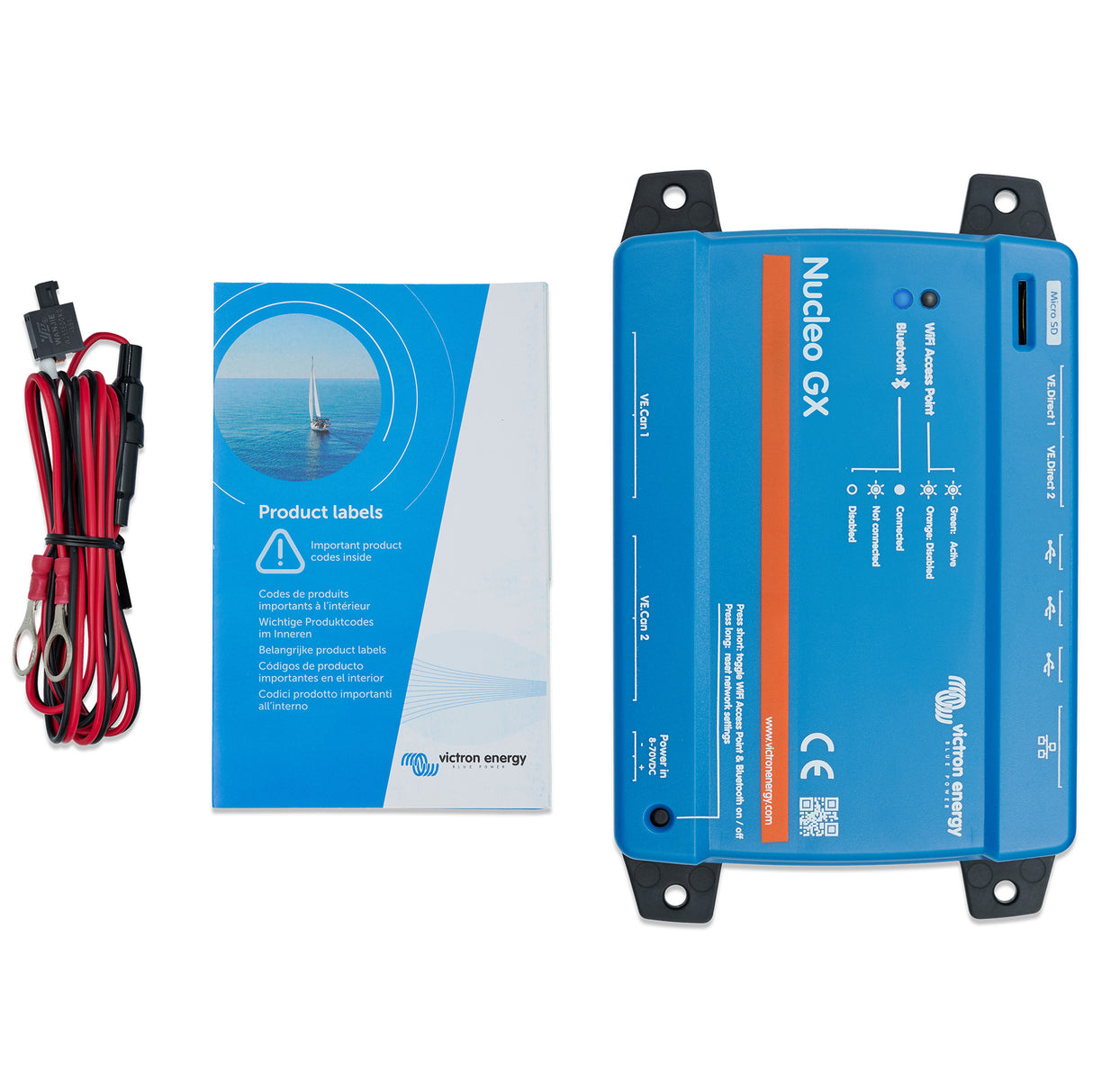

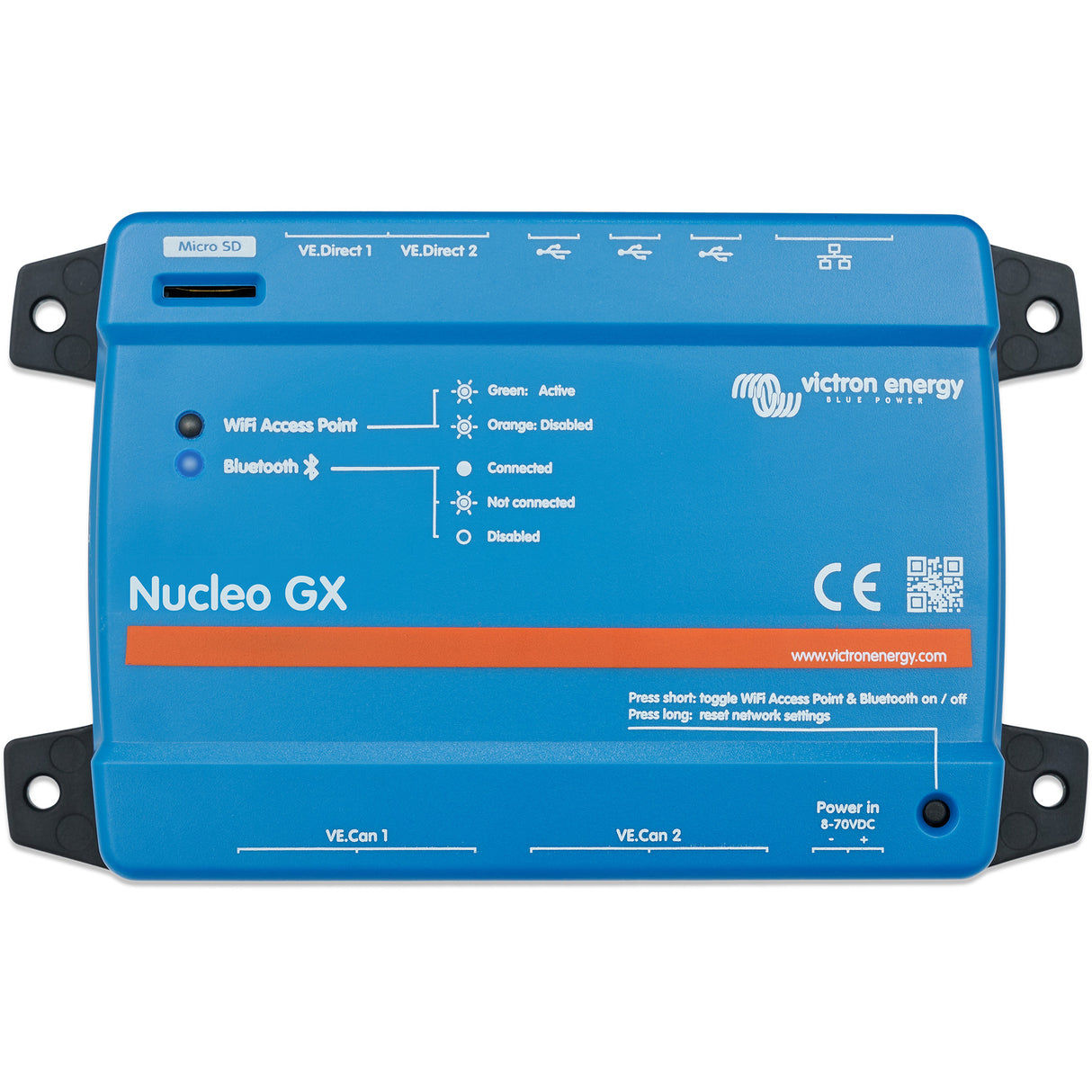

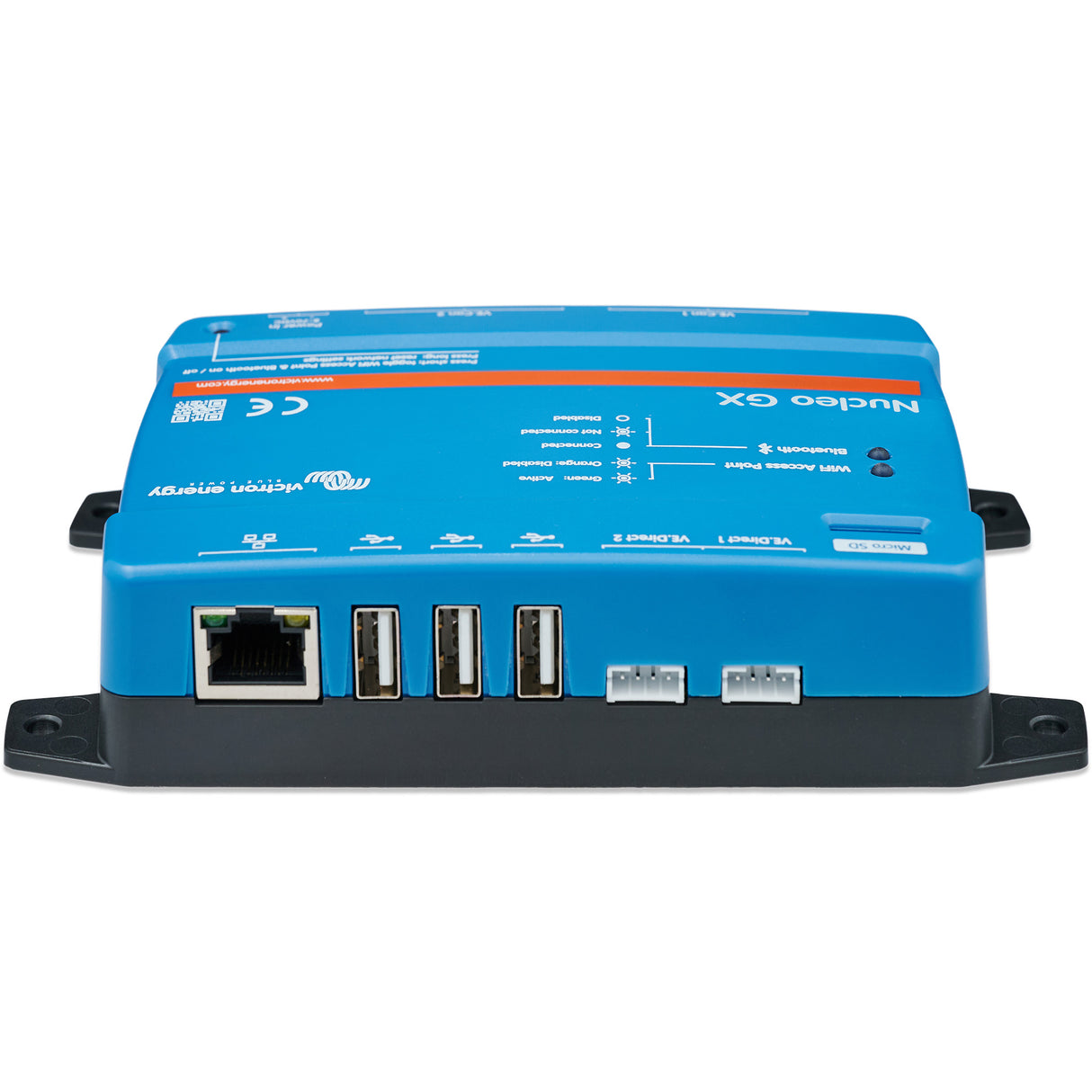

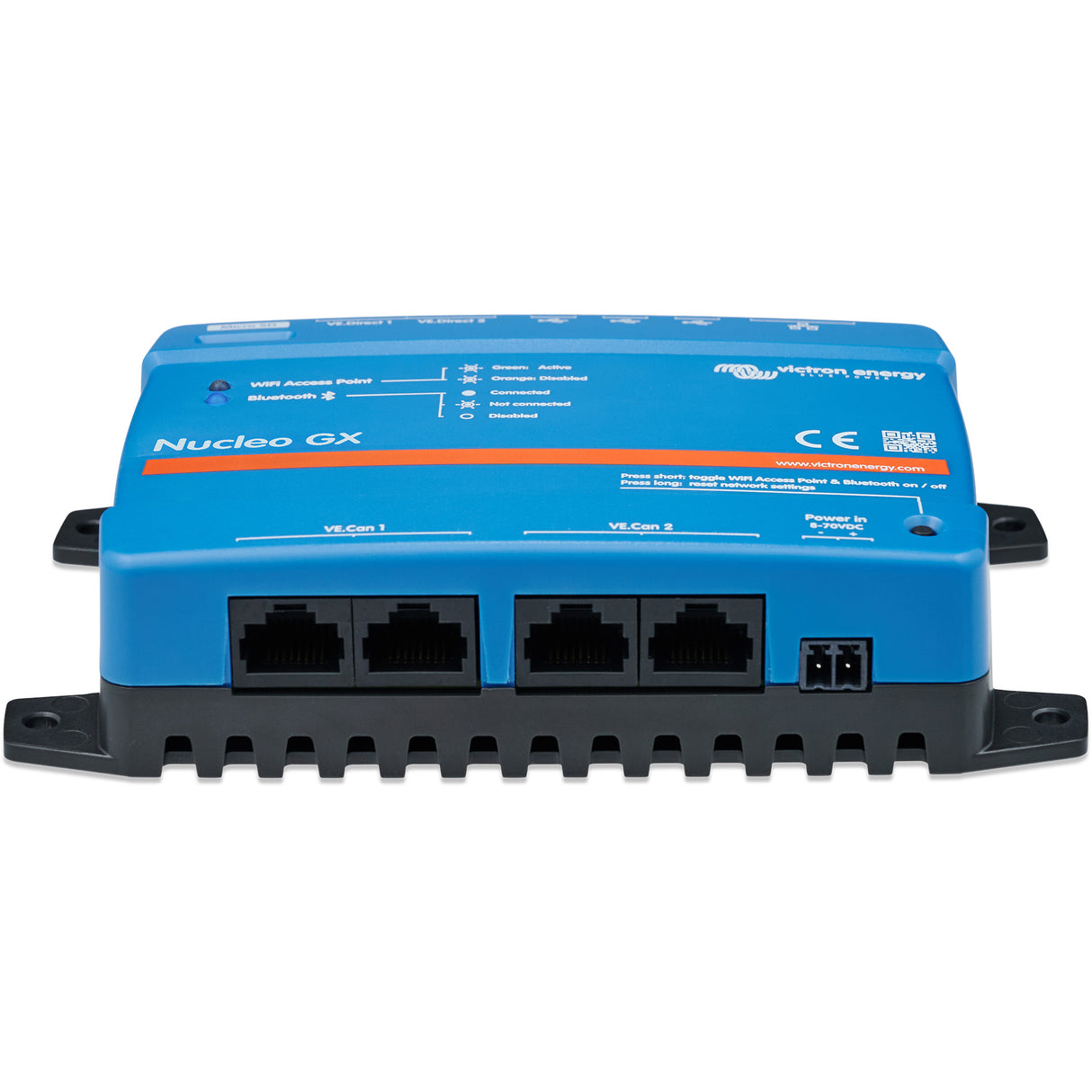

Nucleo GX: communication-centre

The Nucleo GX is a compact, high-performance communication centre for monitoring and controlling your Victron system. It offers fast system response, reliable connectivity, and flexibleexpansion via USB accessories.

Ideal for VE.Can-based installations such as RS systems, it provides full GX functionality with simple setup and seamless remote access through VRM, LAN, or WiFi.

Additional functionality such as VE.Bus connectivity, relays, or analogue inputs can easily be added via optional USB accessories: the MK3-USB interface, GX I/O Extender 150, or GX Tank 140.

Although the Nucleo GX has no HDMI port, an Android GX WiFi Display can be used for local display and control. System access is also available through VictronConnect, a web browser, or VRM.

Compact and high-performance GX platform

Equipped with a quad-core processor, the Nucleo GX delivers fast and reliable system performance in a compact design. It supports up to 25 connected devices via VE.Direct and USB, and even more via VE.Can, ensuring smooth data handling and responsive control in any installation.

Remote Console on VRM

Monitor, control, and configure the Nucleo GX remotely, just as if you were standing in front of it, using Remote Console on VRM. The same functionality is available locally via LAN or through the built-in WiFi Access Point.

Perfect monitoring & control

Monitor real-time system information such as battery state of charge, power consumption, and power harvest from PV, generator, or mains. Easily start or stop generators automatically, adjust key system settings, and track performance trends. Stay informed with alerts, run diagnostics, and resolve issues remotely through VRM or the local network.

Simple mounting and configuration

The Nucleo GX is easy to install on a wall or with the optional DIN35 DIN-rail adapter. Built-in Bluetooth enables quick setup and configuration using the VictronConnect app.
